Passenger Side Front Seat Control Switch Connector

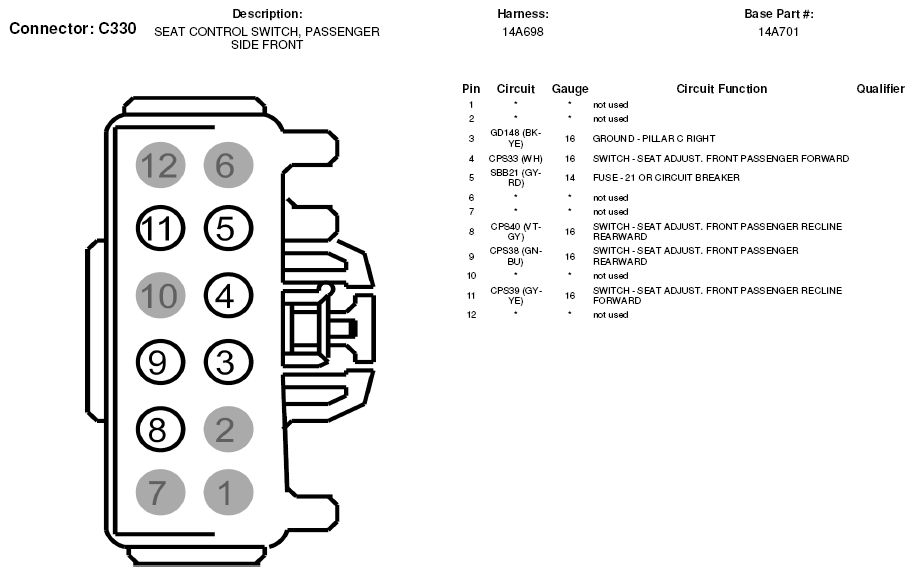

Fig 1: Passenger Side Front Seat Control Switch Connector End View (C330)
G05603327

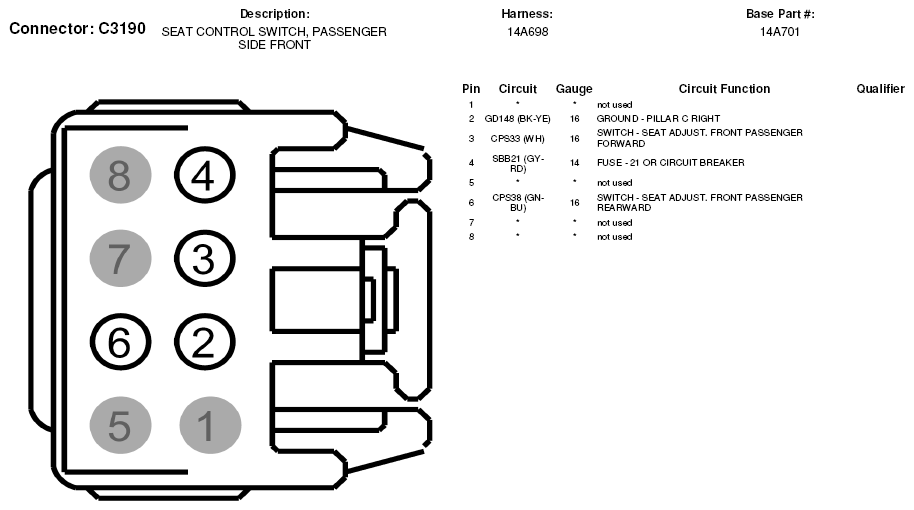

Fig 2: Passenger Side Front Seat Control Switch Connector End View (C3190)
G05603506
