Right Front Fog Lamp Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Right Front Fog Lamp Connector

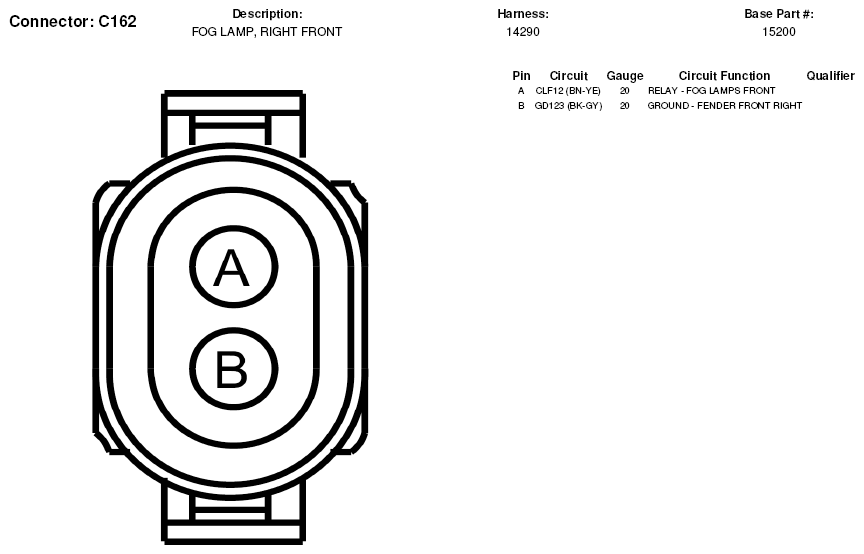

Fig 1: Right Front Fog Lamp Connector End View (C162)
