Exploded View Images

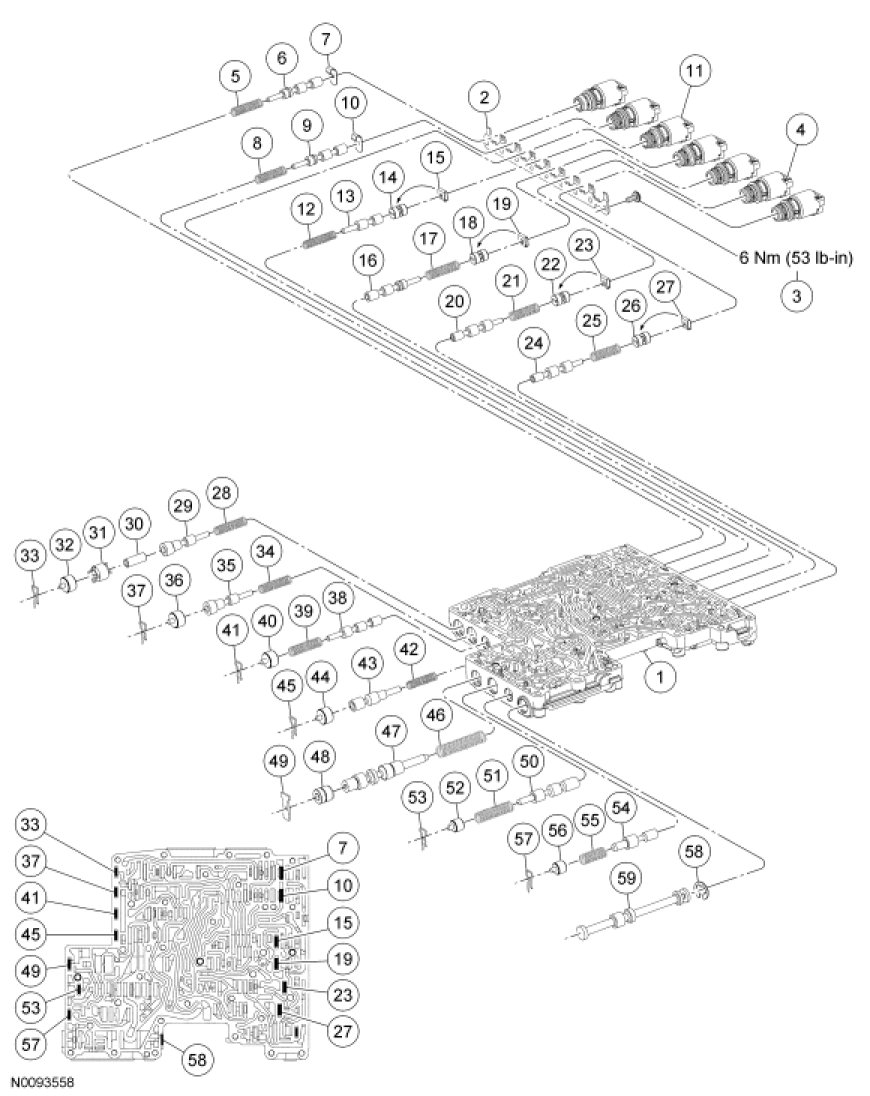

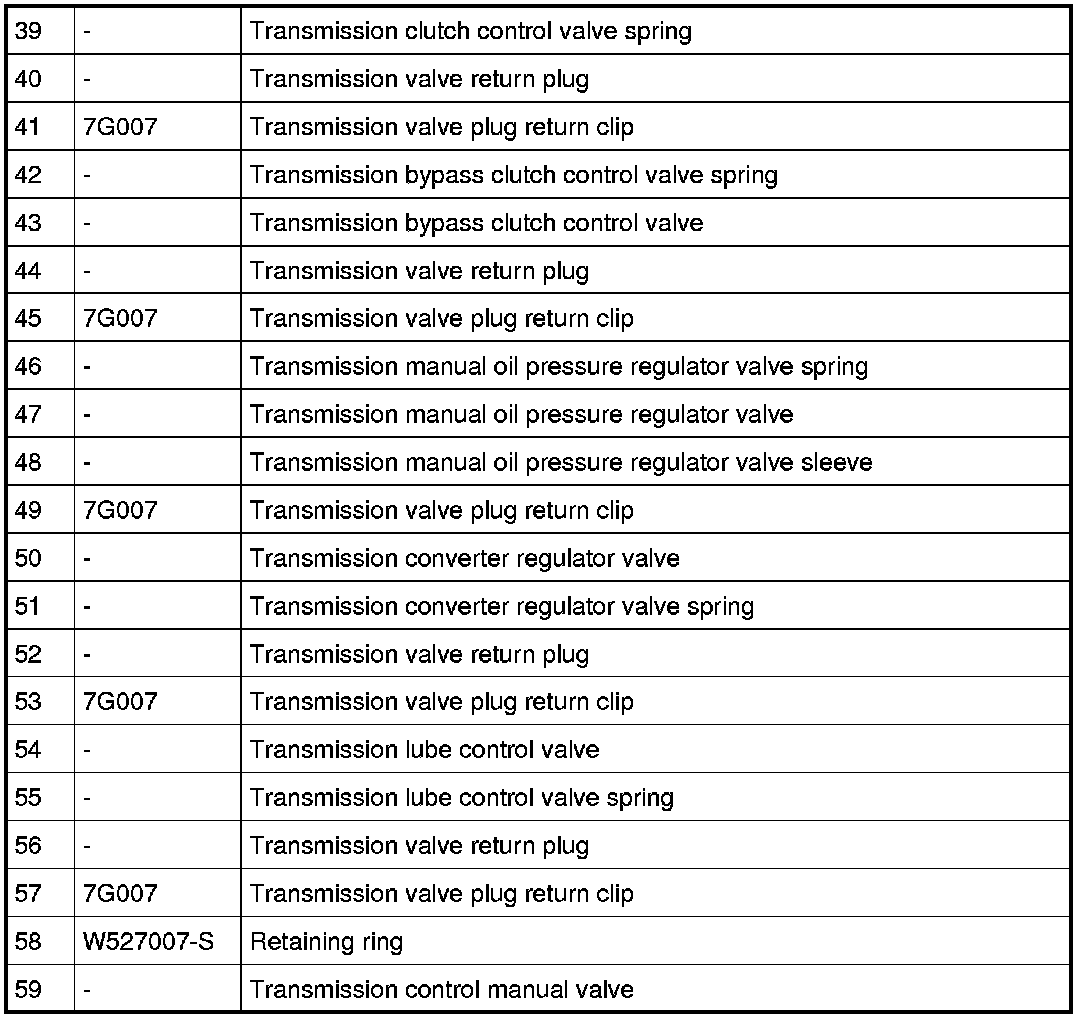

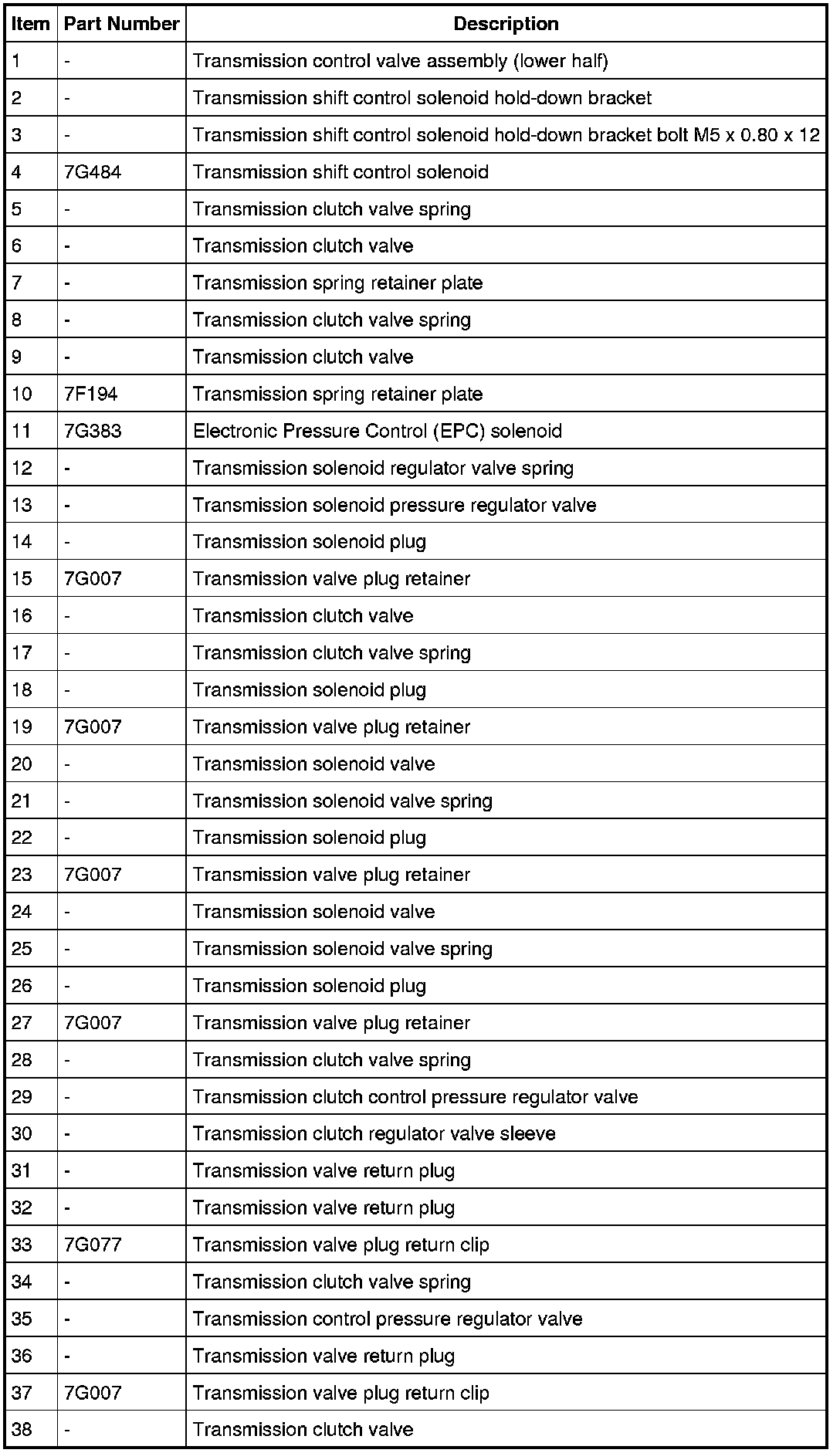

Mechatronic Assembly

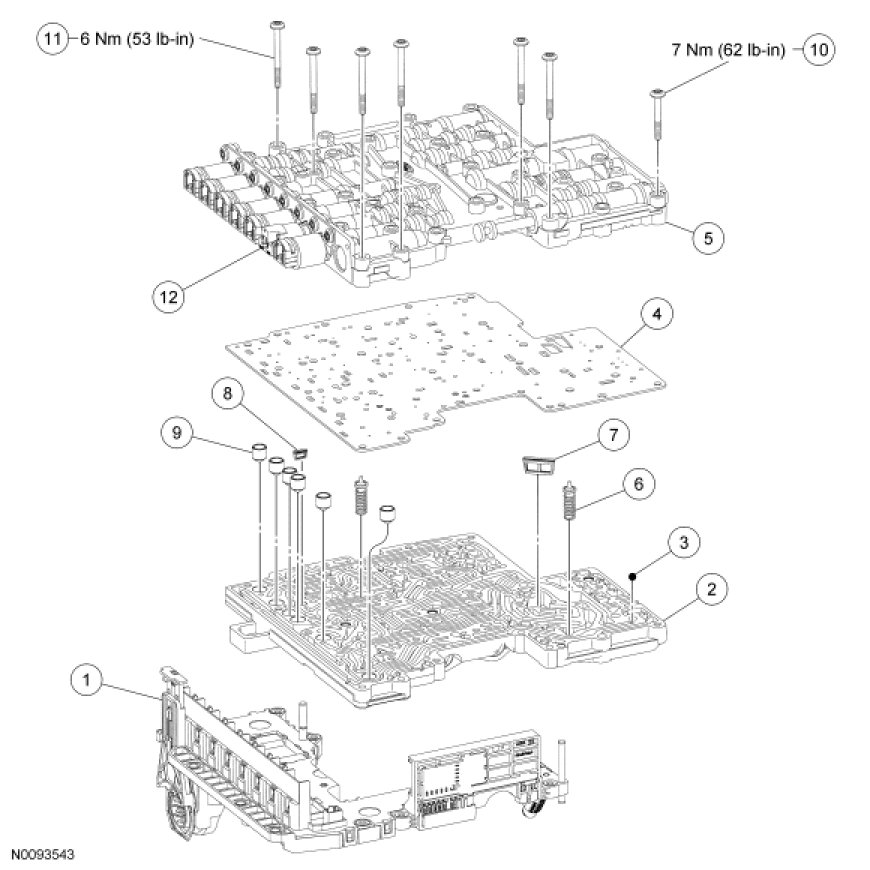

Mechatronic

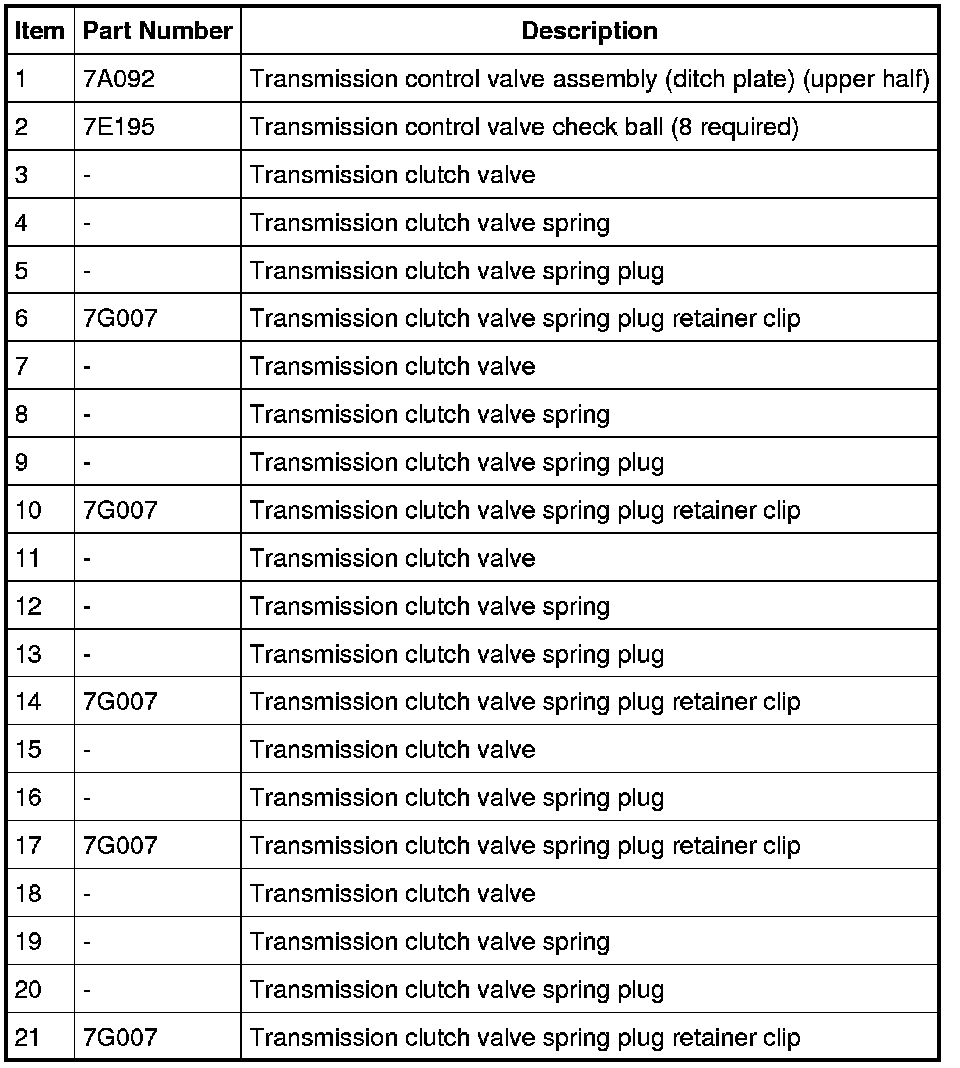

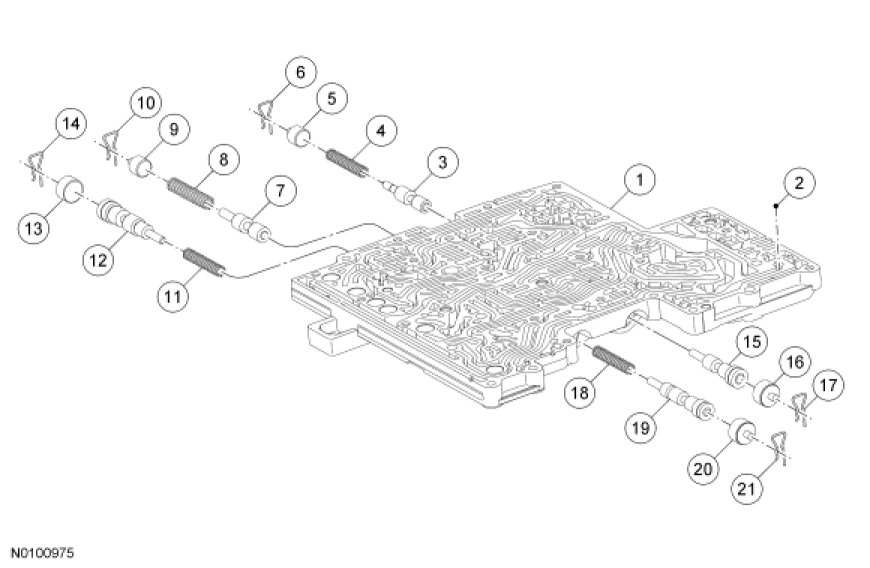

Mechatronic Upper Half










Mechatronic Lower Half

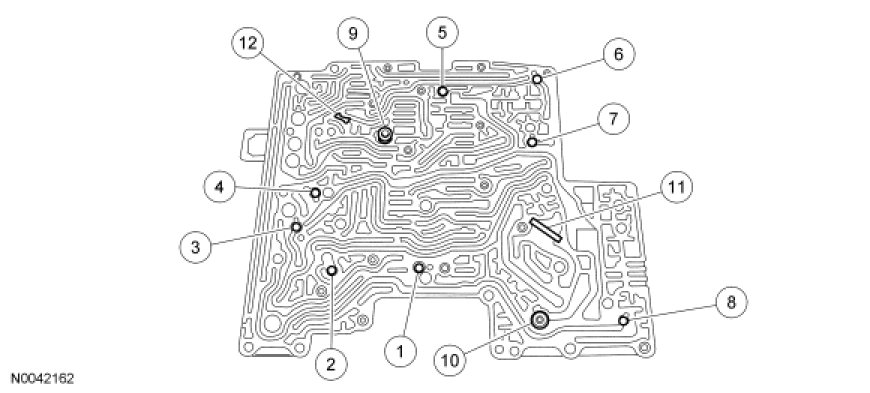

Check Ball Location
