Driver Safety Canopy Module Connector End View - C9018

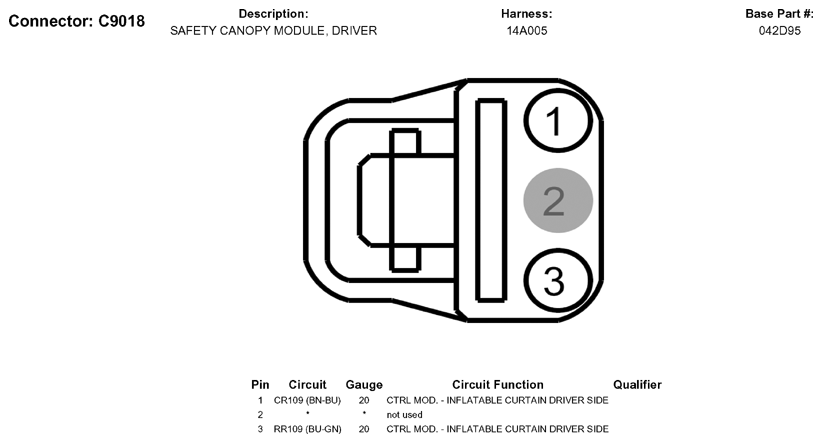

Fig 1: Driver Safety Canopy Module Connector End View (C9018)
G05790214Courtesy of FORD MOTOR CO.
