Driver Seat Module Connector End View - C341B

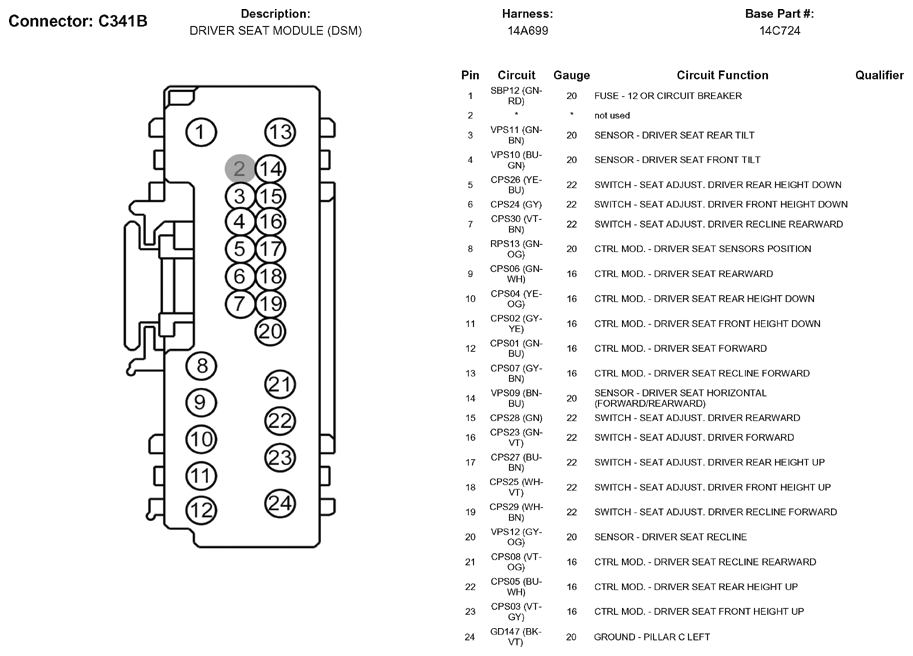

Fig 1: Driver Seat Module Connector End View (C341B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
