Passenger Safety Canopy Module Connector End View - C9032

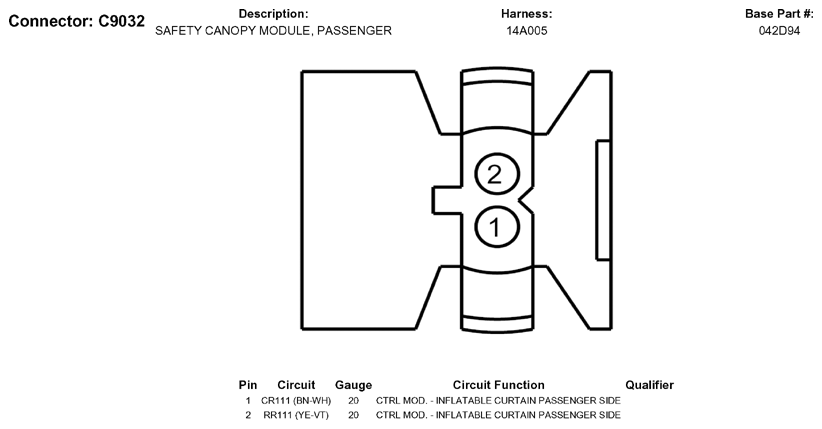

Fig 1: Passenger Safety Canopy Module Connector End View (C9032)
G05790221Courtesy of FORD MOTOR CO.
