Steering Angle Sensor Module Connector - C226

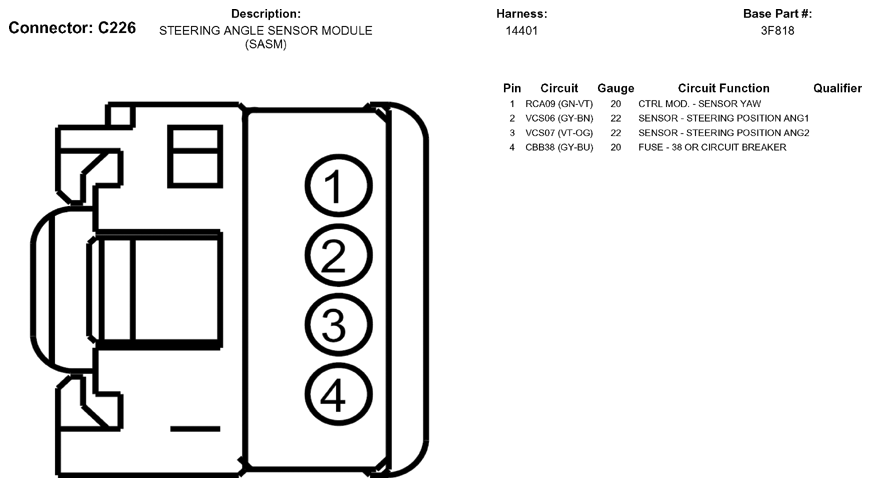

Fig 1: Steering Angle Sensor Module Connector End View (C226)
G05789957Courtesy of FORD MOTOR CO.
