Interior Lamp: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Overhead console with roof opening panel shown. Other consoles are similar.

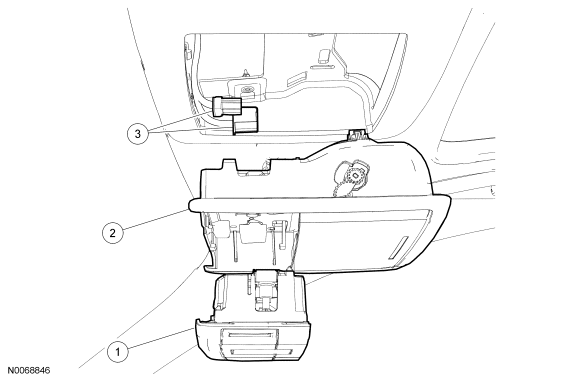

Fig 1: Front Interior Lamp

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	13776	Lamp assembly
2	54519A70	Overhead console
3	-	Overhead console electrical connectors (part of 17K745)

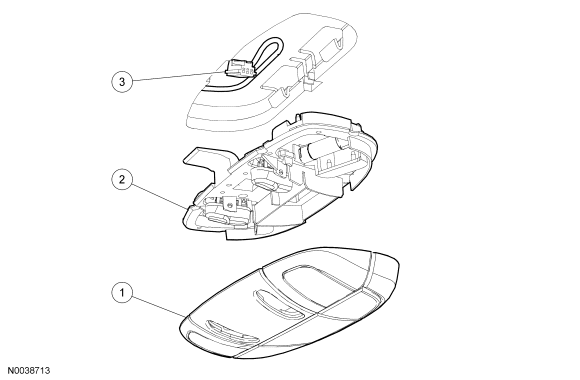

Fig 2: Identifying Front Interior Lamp Without Overhead Console & Rear Interior Lamp

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	13783	Interior lamp lens
2	13776	Interior lamp
3	-	Interior lamp electrical connector (part of 14334)
