Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

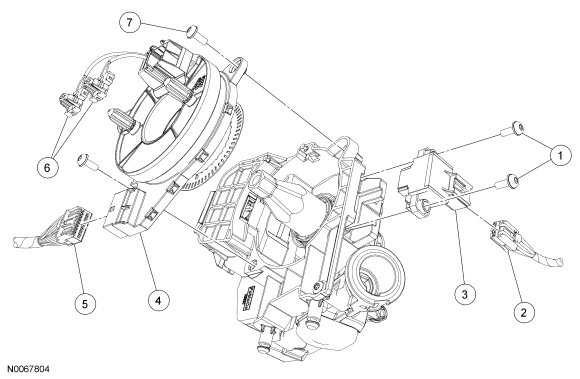

| Item | Part Number | Description |
|---|---|---|
| 1 | W506942 | Steering wheel angle sensor screws (if equipped) (2 required) |
| 2 | - | Steering wheel angle sensor electrical connector (part of 14401) |
| 3 | 3F818 | Steering wheel angle sensor (if equipped) |
| 4 | 14A644 | Clockspring (and steering wheel angle sensor tone ring) (if equipped) |
| 5 | - | Clockspring electrical connector (part of 14401) |
| 6 | - | Driver air bag module electrical connectors |
| 7 | W506942 | Clockspring screw (2 required) |
