Subwoofer Speaker: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

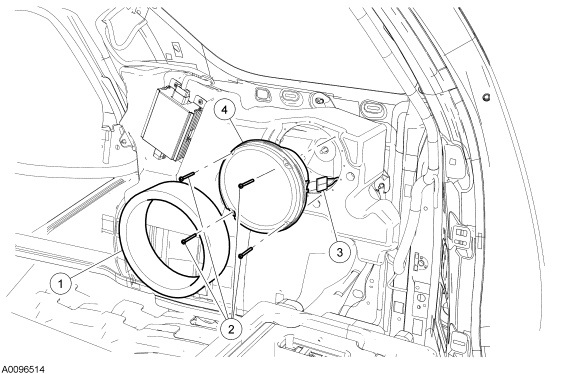

Fig 1: Exploded View Of Subwoofer Speaker

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18C804	Speaker cushion
2	136A10	Subwoofer speaker screws (4 required)
3	14A005	Subwoofer speaker electrical connector
4	150302	Subwoofer speaker
