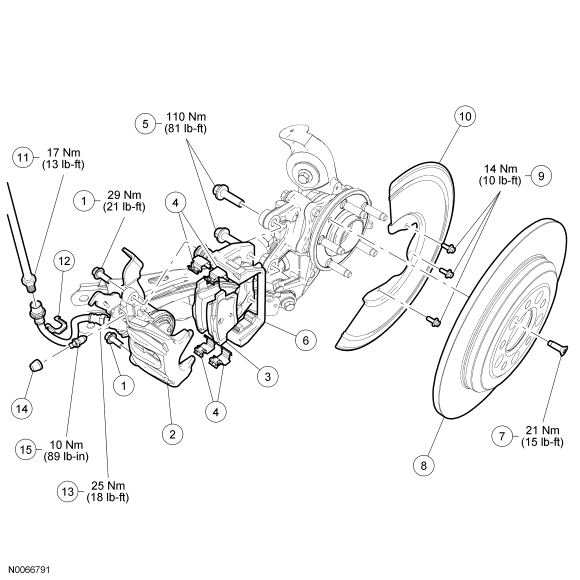

Rear Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper bolts (2 required) (part of kit 2B511) |
| 2 | 2552 RH/ 2553 LH | Brake caliper |
| 3 | 2200 | Brake pad (kit) |
| 4 | - | Spring clips (part of kit 2200) (4 required) |
| 5 | W710681 | Brake caliper anchor plate bolts (2 bolts each side) |
| 6 | 2B511 RH/ 2B512 LH | Brake caliper anchor plate |
| 7 | W708733 | Brake disc screw |
| 8 | 2C026 | Brake disc |
| 9 | W712797 | Brake disc shield bolts (3 required) |
| 10 | 2C508 RH/ 2C509 LH | Brake disc shield |
| 11 | - | Brake tube fitting |
| 12 | - | Brake flexible hose retainer |
| 13 | 2A442 | Brake flexible hose |
| 14 | - | Bleeder cap |
| 15 | - | Bleeder screw |
- For additional information, refer to the procedures in this article.
