Removal And Installation: Driveshaft: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

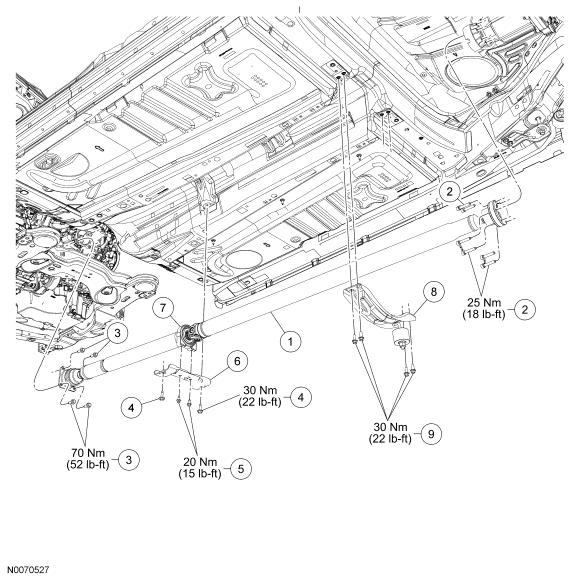

| Item | Part Number | Description |
|---|---|---|
| 1 | 4R602 | Driveshaft assembly |
| 2 | W790063 | Pinion flange bolt and washer assembly (3 required) |
| 3 | W711918-S439 | Power transfer unit (PTU) flange bolts (4 required) |
| 4 | W701834-S439 | Center bearing bracket bolts (2 required) |
| 5 | W500220-S439 | Center bearing bolts (2 required) |
| 6 | 4B403 | Center bearing bracket |
| 7 | - | Center bearing (part of 4602) |
| 8 | 5A204 | Exhaust support brace |
| 9 | - | Exhaust support brace bolts (4 required) (part of 5A204) |
