Ignition Switch: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

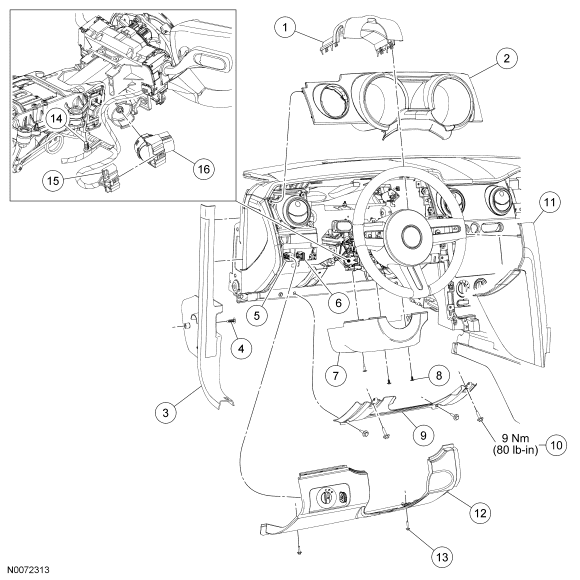

| Item | Part Number | Description |
|---|---|---|
| 1 | 3530A | Upper steering column shroud |
| 2 | 044D70 | Instrument cluster finish panel |
| 3 | A30A64 | LH A-pillar lower trim panel |
| 4 | W505156 | LH A-pillar lower trim panel screw |
| 5 | - | Headlamp switch electrical connector (part of 14401) |
| 6 | - | Courtesy lamp switch electrical connector (part of 14401) |
| 7 | 3530B | Lower steering column shroud |
| 8 | W707281 | Lower steering column shroud screw (3 required) |
| 9 | 04502 | Steering column opening cover reinforcement |
| 10 | W505424 | Steering column opening cover reinforcement bolt (4 required) |
| 11 | 04608 | Left center stack wing |
| 12 | 04459 | Steering column opening cover |
| 13 | W505156 | Steering column opening cover screw (2 required) |
| 14 | - | Wiring harness retainer (part of 14401) |
| 15 | - | Ignition switch electrical connector (part of 14401) |
| 16 | 11572 | Ignition switch |
