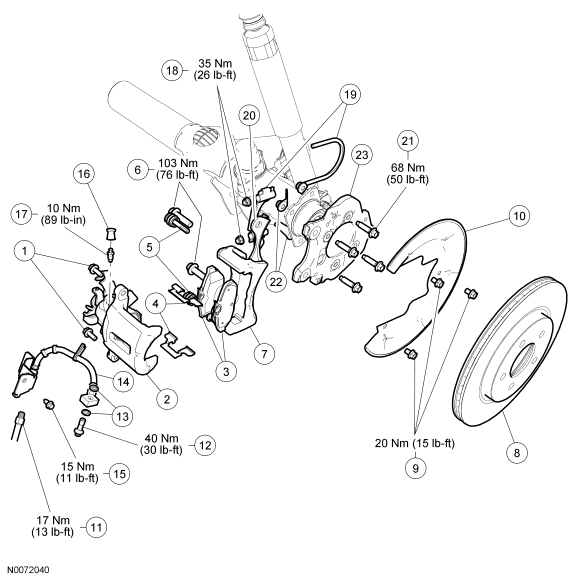

Rear Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
4.0L SOHC and 4.6L (3L) shown, 5.4L similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2N386 | Brake caliper guide pin bolts |
| 2 | 2552 RH/ 2553 LH | Brake caliper |
| 3 | 2218 | Brake pads (kit) |
| 4 | - | Spring clips (part of kit 2200) |
| 5 | - | Guide pin and boot (part of kit 2B296) |
| 6 | W705821 | Brake caliper anchor plate bolt kits (2 bolts each side) |
| 7 | 2B511 | Brake caliper anchor plate |
| 8 | 2C026 | Brake disc |
| 9 | W500020 | Brake disc shield bolts (3 required) (part of 2C029) |
| 10 | 2C029 | Brake disc shield |
| 11 | - | Brake tube fitting (part of 2268) |
| 12 | W712275 | Brake caliper flow bolt |
| 13 | W712362 | Copper washers (2 required) |
| 14 | 2A442 RH/ 2A478 LH | Brake hose |
| 15 | N802191 | Brake hose bracket bolt |
| 16 | - | Bleeder screw cap (part of 2N033) |
| 17 | 2N033 | Bleeder screw |
| 18 | W520112 | Anti-moan bracket U-bolt nuts (2 required) |
| 19 | - | Anti-moan bracket U-bolt and clamp (part of 2C371) |
| 20 | 2C371 | Anti-moan bracket (4.0L SOHC and 4.6L [3V] only) |
| 21 | - | Brake caliper support bracket bolts (4 required) (part of 4001) |
| 22 | - | Brake caliper support bracket flag nuts (4 required) (part of 4001) |
| 23 | - | Brake caliper support bracket (part of 4001) |
- For additional information, refer to the procedures.
