Catalyst Monitor Sensor - 4.0L SOHC: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Socket, Exhaust Gas Oxygen Sensor	303-476 (T94P-9472-A)

Material

Item	Specification
High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada)	ESE-M12A4-A
Penetrating and Lock Lubricant XL-1 (US); CXC-51-A (Canada)	-

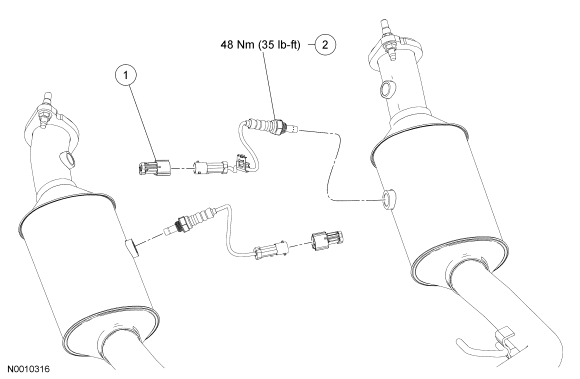

Fig 1: Exploded View Of Catalyst Monitor Sensor With Torque Specification - 4.0L SOHC

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Catalyst monitor sensor electrical connector (2 required)
2	9F472	Catalyst monitor sensor (2 required)
