Compressor to Condenser Discharge Line: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

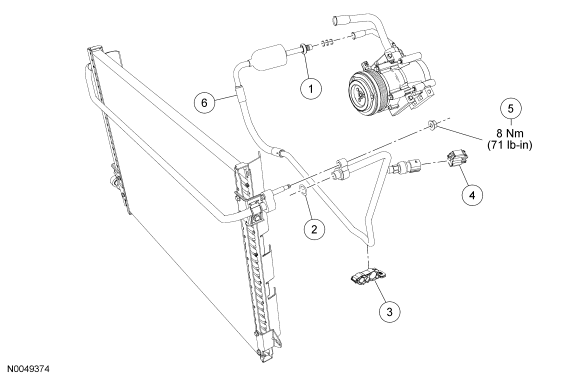

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Compressor discharge fitting (part of 19972) |
| 2 | 19E889 | O-ring (4 required) |
| 3 | 19B632 | A/C line bracket |
| 4 | - | Dual-function pressure switch electrical connector (part of 12B637) |
| 5 | W520413 | Condenser inlet fitting nut |
| 6 | 19972 | Compressor-to-condenser discharge line |
