Convertible Top - Exploded View
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

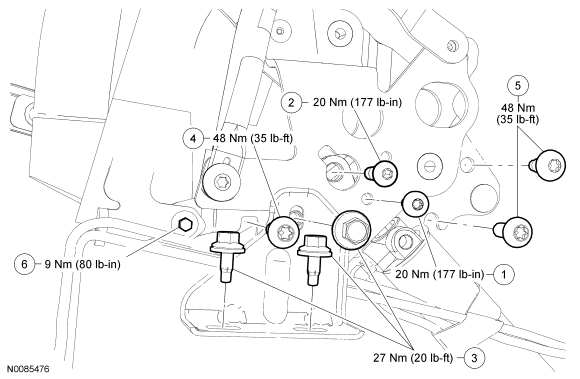

| Item | Part Number | Description |
|---|---|---|
| 1 | W709053 | Hydraulic lift cylinder bracket bolt (2 required) |
| 2 | N808519 | Clevis-to-hydraulic lift cylinder rod bolt (2 required) |
| 3 | W711423 | L-bracket bolts (6 required) |
| 4 | W711772 | Pivot bracket rear bolt (2 required) |
| 5 | W711393 | Pivot bracket front bolts (4 required) |
| 6 | W506413 | Convertible top frame No. 5 bow pivot bolt (2 required) |

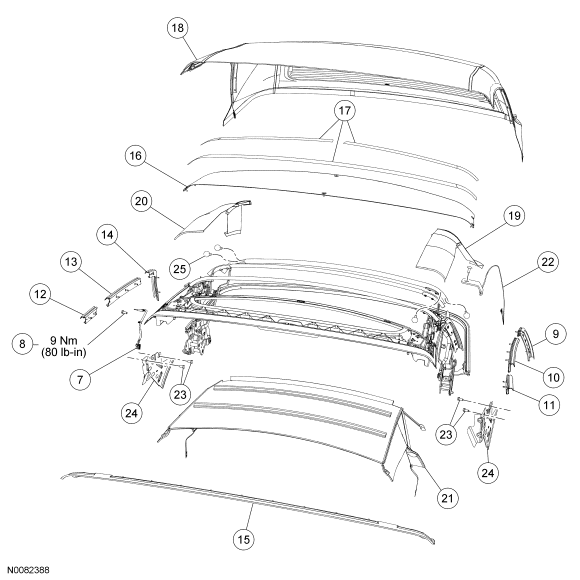

| Item | Part Number | Description |
|---|---|---|
| 7 | 14018 | Convertible top ajar switch |
| 8 | - | Convertible top ajar switch screw |
| 9 | 51555 | LH rear weatherstrip retainer channel |
| 10 | 51561 | LH center weatherstrip retainer channel |
| 11 | 51543 | LH front weatherstrip retainer channel |
| 12 | 51542 | RH front weatherstrip retainer channel |
| 13 | 51560 | RH center weatherstrip retainer channel |
| 14 | 51554 | RH rear weatherstrip retainer channel |
| 15 | 514A34 | Compression panel |
| 16 | - | Header form panel (part of 7653038) |
| 17 | - | Double-sided tape |
| 18 | 52700 | Top cover assembly |
| 19 | 54212 | LH stay pad |
| 20 | 54213 | RH stay pad |
| 21 | 51916 | Convertible top headliner |
| 22 | 52806 RH/ 52807 LH | Convertible top tension cable |
| 23 | W710918 | Pivot bracket-to-quarter panel bracket bolts (6 required) |
| 24 | 28126 RH/ 28127 LH | Pivot bracket-to-quarter panel brackets |
| 25 | W707504 | Rivet (37 required) |

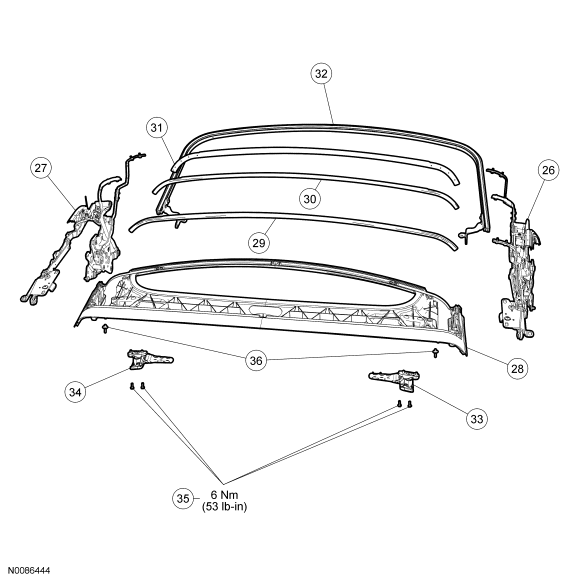

| Item | Part Number | Description |
|---|---|---|
| 26 | 53105 | Convertible top frame LH side rail |
| 27 | 53104 | Convertible top frame RH side rail |
| 28 | 53024 | Convertible top frame No. 1 bow |
| 29 | 51274 | Convertible top frame No. 2 bow |
| 30 | 51269 | Convertible top frame No. 3 bow |
| 31 | 52178 | Convertible top frame No. 4 bow |
| 32 | 52188 | Convertible top frame No. 5 bow |
| 33 | 50508-B | LH convertible top latch |
| 34 | 50508-A | RH convertible top latch |
| 35 | - | Convertible top latch screws (4 required) |
| 36 | 514A38 | Dowel pins (2 required) |
- For additional information, refer to the procedures.
