Driveshaft Universal Joint: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer/Remover, C-Frame and Screw | 205-086 (T74P-4635-C) |

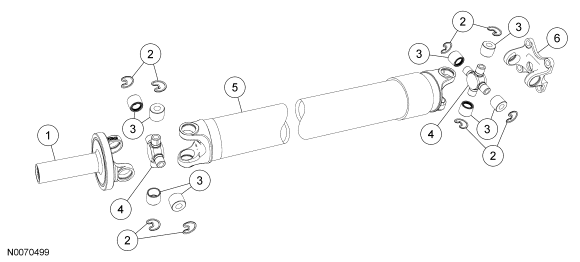

| Item | Part Number | Description |
|---|---|---|
| 1 | 4841 | Driveshaft slip yoke |
| 2 | - | Snap rings (4 required) (part of 4635) |
| 3 | - | Bearing cups (part of 4635) |
| 4 | - | Spiders (part of 4635) |
| 5 | 4602 | Driveshaft |
| 6 | 4782 | Driveshaft centering socket flange |
