Stabilizer Bar: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

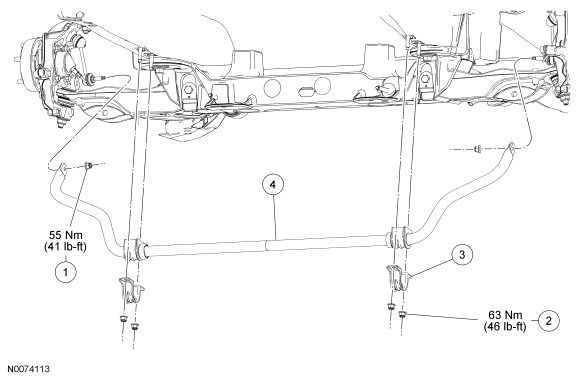

Fig 1: Exploded View Of Stabilizer Bar With Torque Specifications
GF0013830Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520213 Lower stabilizer bar link nut (2 required)
2 W520213 Stabilizer bar bracket nut (4 required)
3 4A407 Stabilizer bar bracket (2 required)
4 5482 Stabilizer bar
