Removal & Installation: Radiator: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

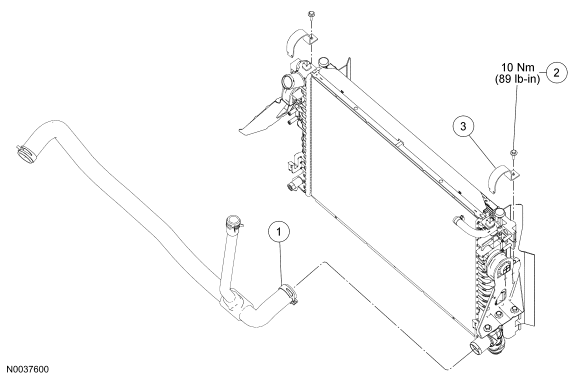

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8B273 |
Lower radiator hose |
| 2 |
8A194 |
Radiator support bracket (2 required) |
| 3 |
W505424 |
Radiator support bracket bolt (2 required) |

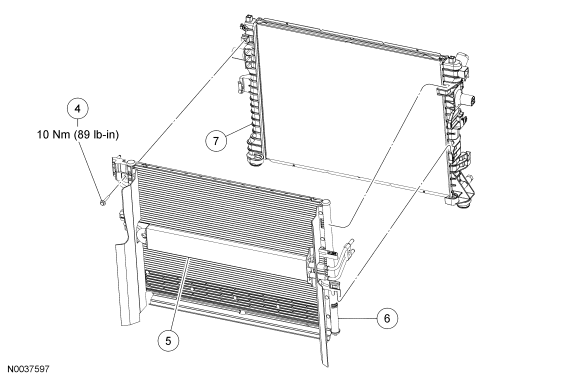

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 4 |
W505428 |
A/C condenser-to-radiator bolt |
| 5 |
3D746 |
Power steering cooler |
| 6 |
19E908 |
A/C condenser |
| 7 |
8005 |
Radiator |
