Suction Accumulator To Compressor Line: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

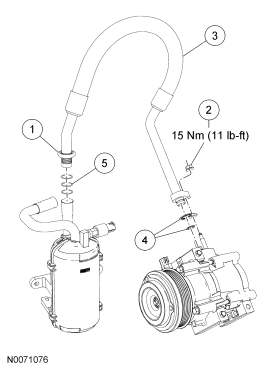

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Suction accumulator outlet fitting (part of 19867) |
| 2 | W520413 | Compressor suction fitting nut |
| 3 | 19867 | Suction accumulator-to-compressor line |
| 4 | 19B596 | O-ring seal and gasket seal kit |
| 5 | 19E889 | O-ring seal (3 required) |
