Seat Position Sensor: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14B416 |
Seat position sensor |
| 2 |
W611624 |
Seat position sensor bolt |
| 3 |
- |
Seat position sensor electrical connector (part of 14A669) |
| 4 |
W611624 |
Magnet assembly bolt |
| 5 |
14B417 |
Magnet assembly |
Courtesy of FORD MOTOR CO.

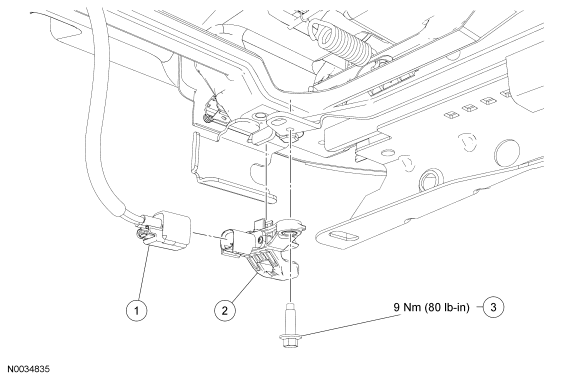

| Item |
Part Number |
Description |
| 1 |
- |
Seat position sensor electrical connector (part of 14A669) |
| 2 |
14B416 |
Seat position sensor |
| 3 |
W611624 |
Seat position sensor bolt |
