Side Impact Sensor: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

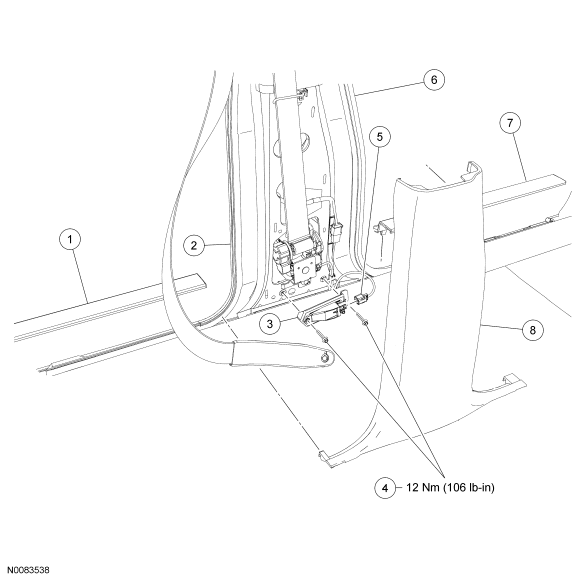

RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 13228 | Rear door scuff plate |
| 2 | 25325 | Rear door B-pillar weatherstripping |
| 3 | 14B345 | Side impact sensor and bracket |
| 4 | W707935 | Side impact sensor bolts |
| 5 | - | Side impact sensor electrical connector (part of 14A005) |
| 6 | 20709 | Front door B-pillar weatherstripping |
| 7 | 13208 | Front door scuff plate |
| 8 | 24347 | Lower B-pillar trim panel |
