Selector Lever - Column Shift: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

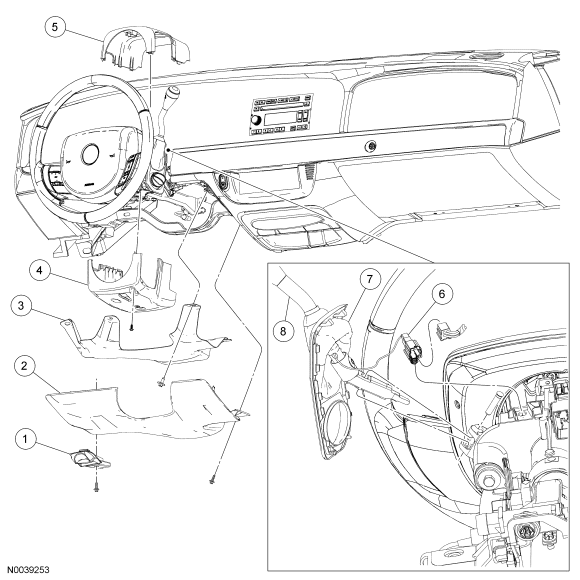

Fig 1: Exploded View Of Column Shift Selector Lever
GF0014179Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2B658 Park brake release handle
2 5404459 Steering column opening finish panel
3 5404502 Finish panel reinforcement
4 3533 Lower steering column shroud
5 3530 Upper steering column shroud
6 14A624 Transmission control (TC) switch electrical connector
7 - Selector lever cover
8 7202 Selector lever
