In-Vehicle Temperature Sensor Connector - C233

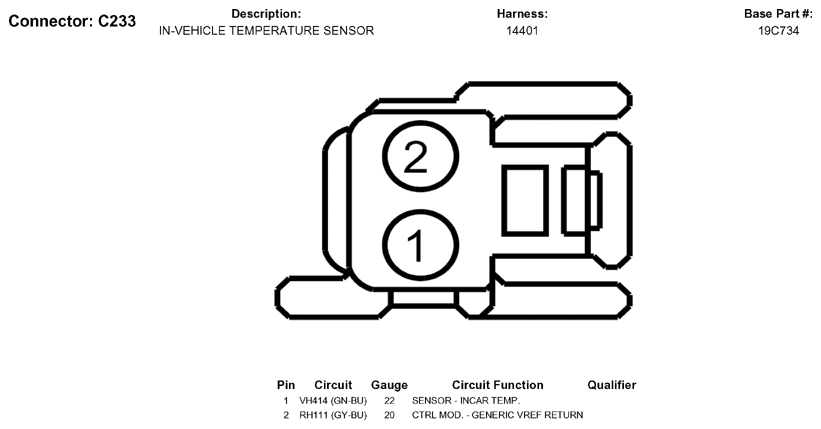

Fig 1: In-Vehicle Temperature Sensor Connector End View (C233)
G05789960Courtesy of FORD MOTOR CO.
