Left Second Row Seat Control Switch Connector - C3343

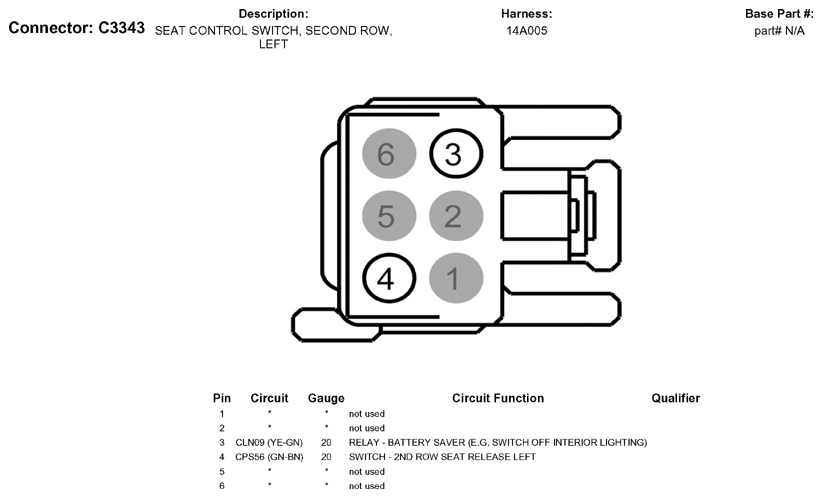

Fig 1: Left Second Row Seat Control Switch Connector End View (C3343)
G05790191Courtesy of FORD MOTOR CO.
