Mass Air Flow Sensor / Intake Air Temperature Sensor Connector - C128

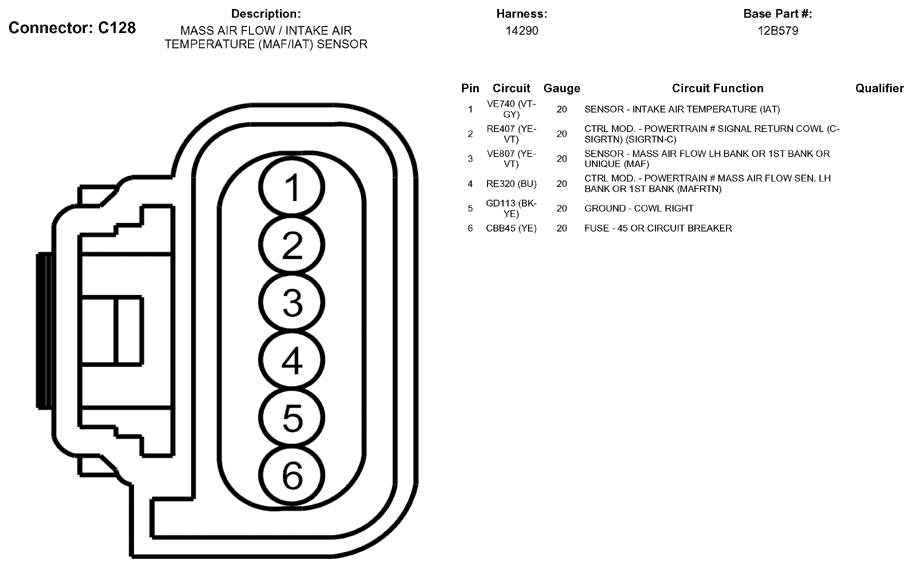

Fig 1: Mass Air Flow Sensor / Intake Air Temperature Sensor Connector End View (C128)
G05789910Courtesy of FORD MOTOR CO.
