Smart Junction Box Connector End View - C2280F

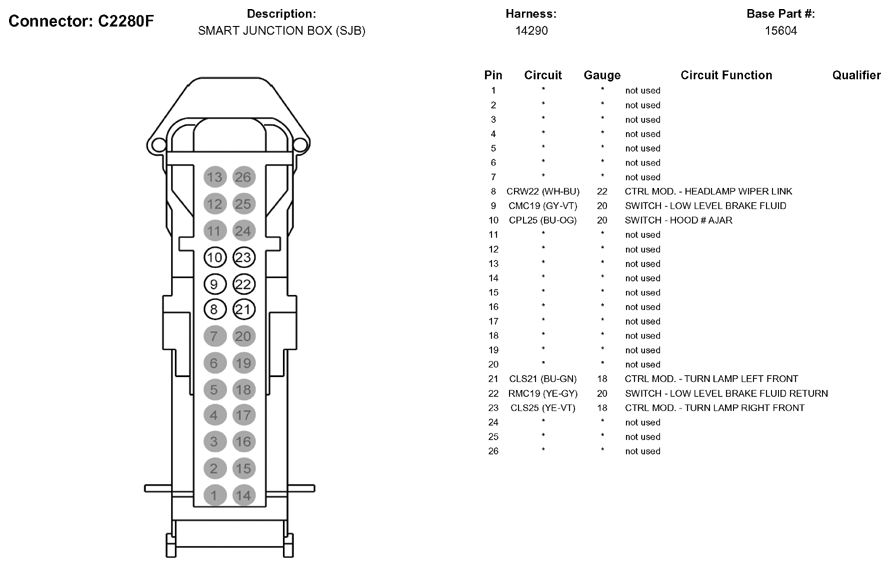

Fig 1: Smart Junction Box Connector End View (C2280F)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
