Speed Control Deactivation Switch Connector - C277

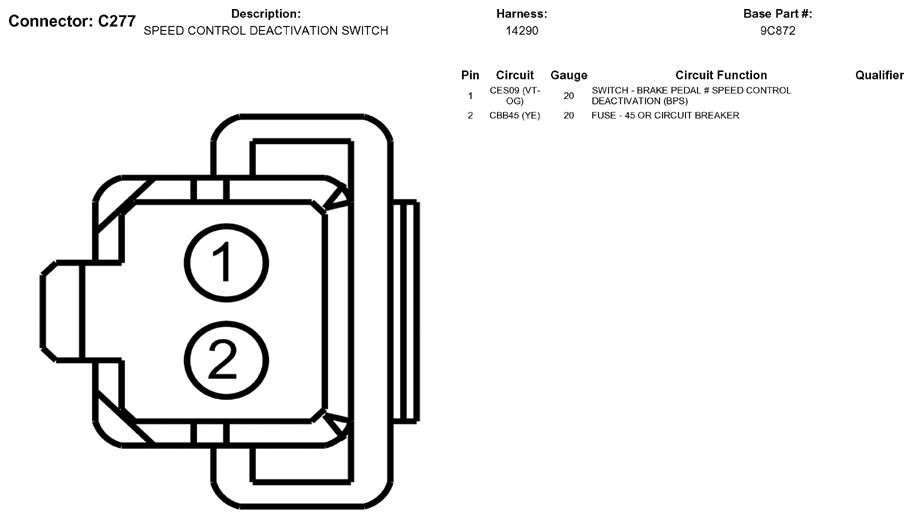

Fig 1: Speed Control Deactivation Switch Connector End View (C277)
G05789970Courtesy of FORD MOTOR CO.
