Axle Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

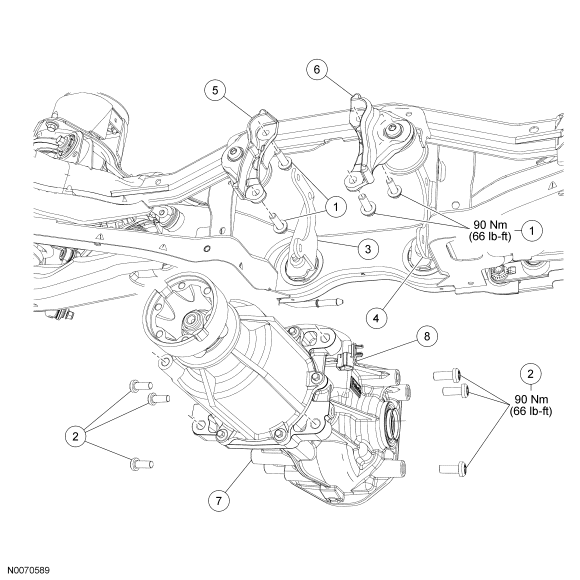

Fig 1: Axle Assembly With Torque Specifications
GF0045763Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W713482 Differential housing-to-front insulator bracket bolts (4 required)
2 W709862 Side insulator bracket-to-rear axle differential bolts (6 required)
3 4K204 Right rear insulator bracket
4 4K204 Left rear insulator bracket
5 4K360 Right front insulator bracket
6 4k630 Left rear insulator bracket
7 4000 Rear axle assembly
8 - Active torque coupling connector (part of 4000)
