Transaxle Filler Tube: Notes

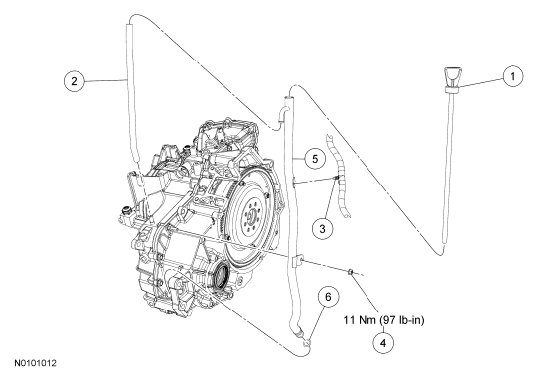

Fig 1: Transaxle Filler Tube Replacement Components With Torque Specifications
G06278293Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7A020 Transmission fluid level indicator
2 - Transaxle vent tube (part of 7A228)
3 13A506 Wiring harness retainer
4 N805320 Transaxle filler tube nut
5 7A228 Transaxle filler tube
6 - Transaxle filler tube O-ring
