Fuel Level Sensor: Description and Operation
ENGINE CONTROL COMPONENTSFuel Pump (FP) Module
The FP module is a device that contains the fuel pump and sender assembly. The fuel pump is located inside the FP module and supplies fuel through the FP module manifold to the engine and FP module jet pump. The jet pump continuously refills the reservoir with fuel, and a check valve located in the manifold outlet maintains system pressure when the fuel pump is not energized. A flapper valve located in the bottom of the reservoir allows fuel to enter the reservoir and prime the fuel pump during the initial fill.

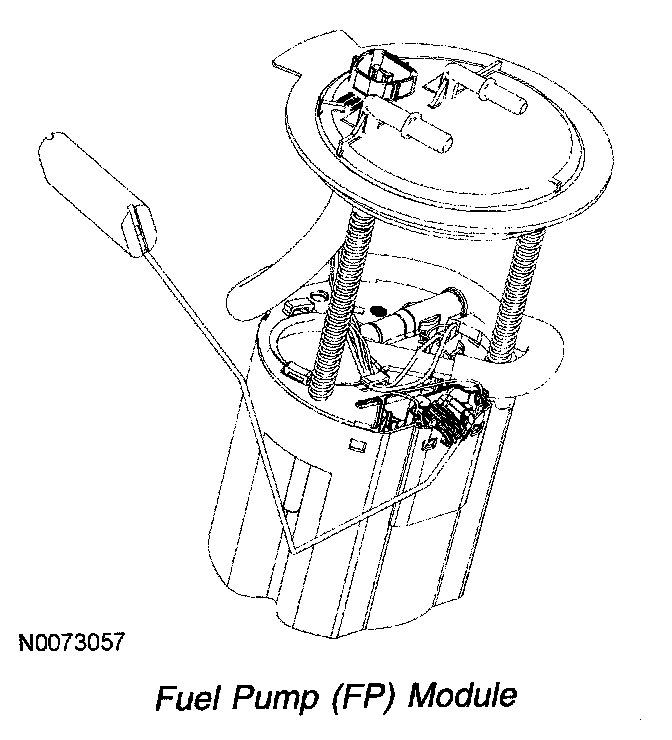

Fuel Pump (FP) Module:
