Mercury
>>
2011
>>
Mariner 4WD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
>>
C1458B Transaxle Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

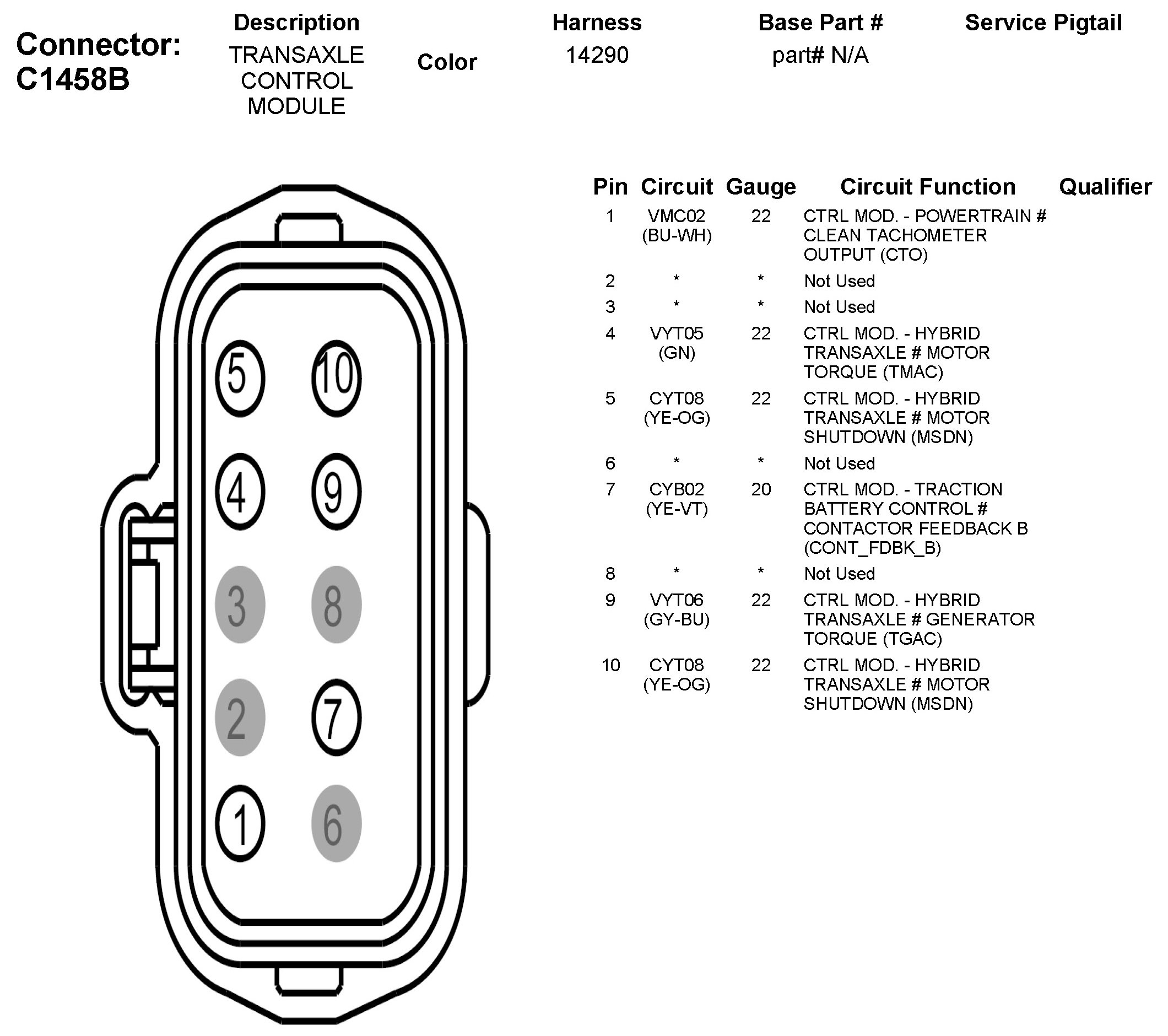

C1458B Transaxle Control Module
