July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Test H: Fuel Control

PINPOINT TEST H: FUEL CONTROL

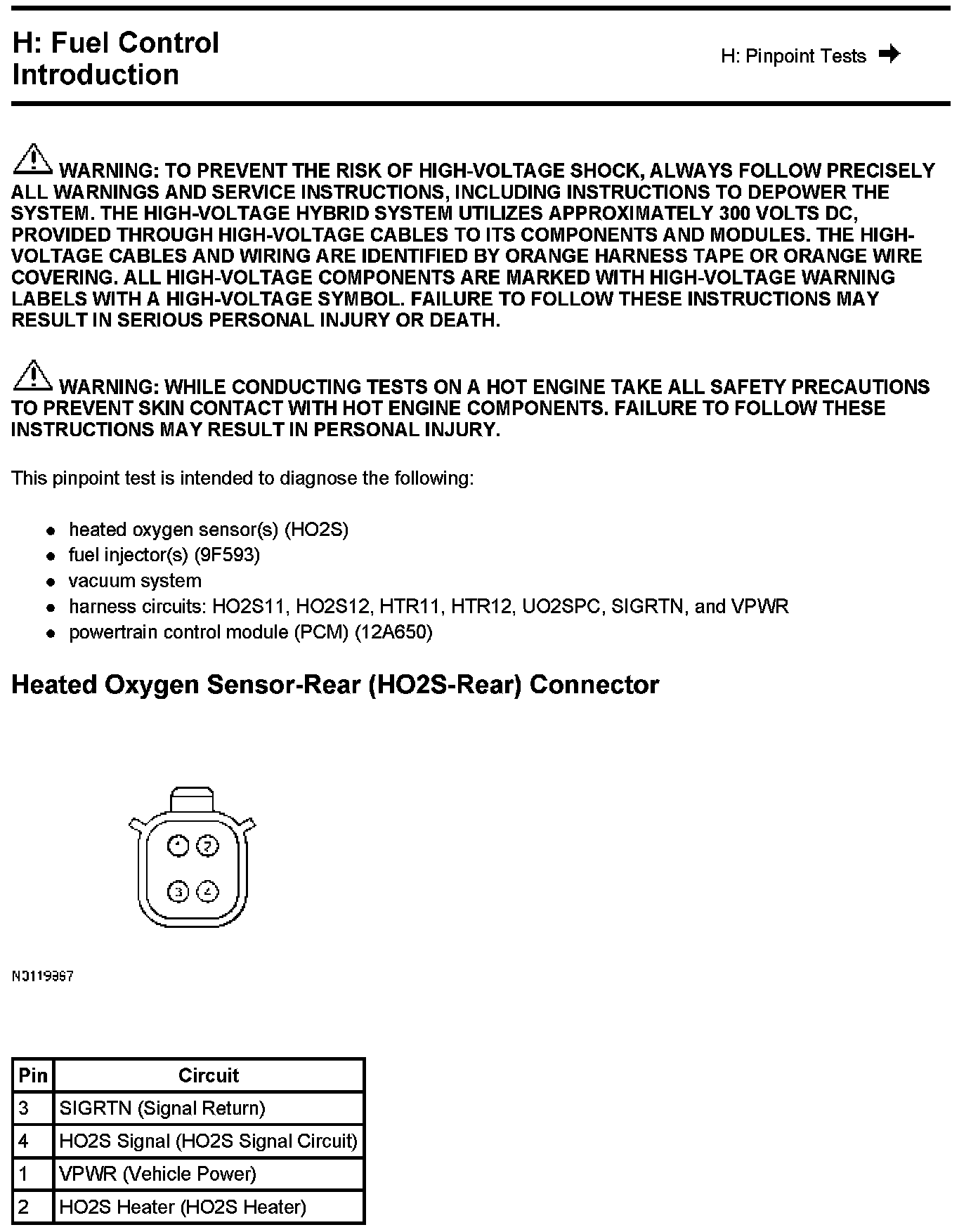

Warnings And Heated Oxygen Sensor-Rear (HO2S-Rear) Connector:

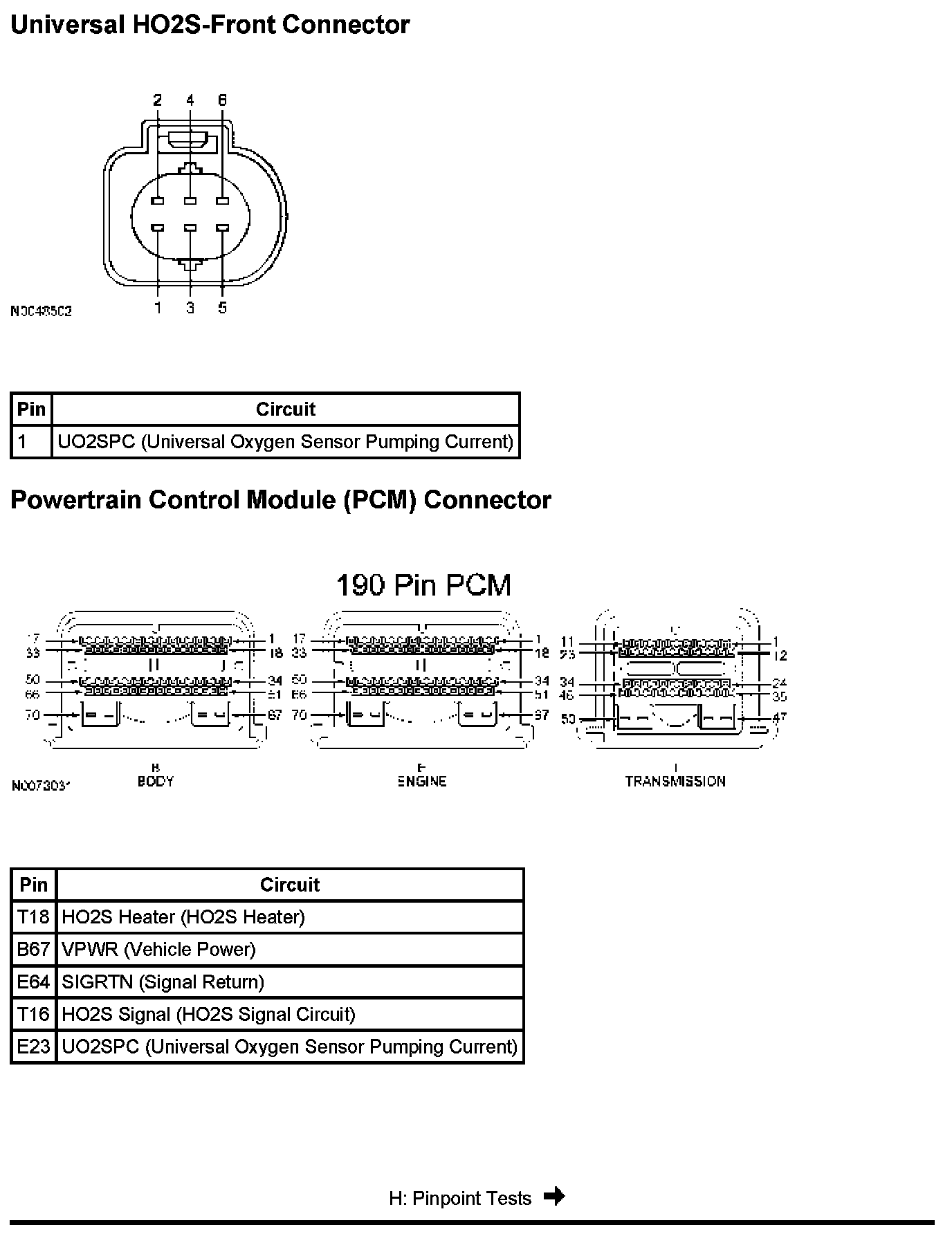

Universal HO2S-Front Connector And Powertrain Control Module (PCM) Connector:

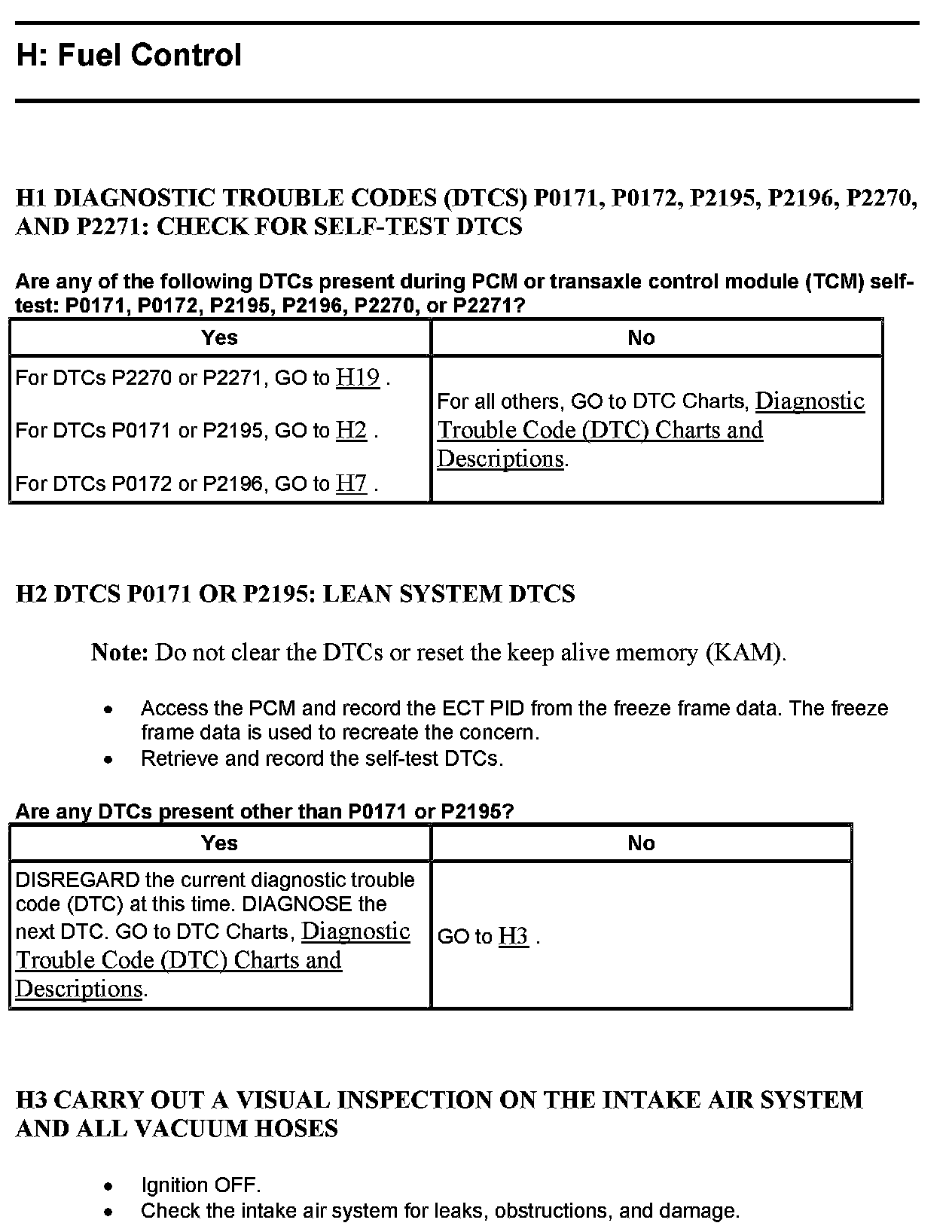

H1-H3:

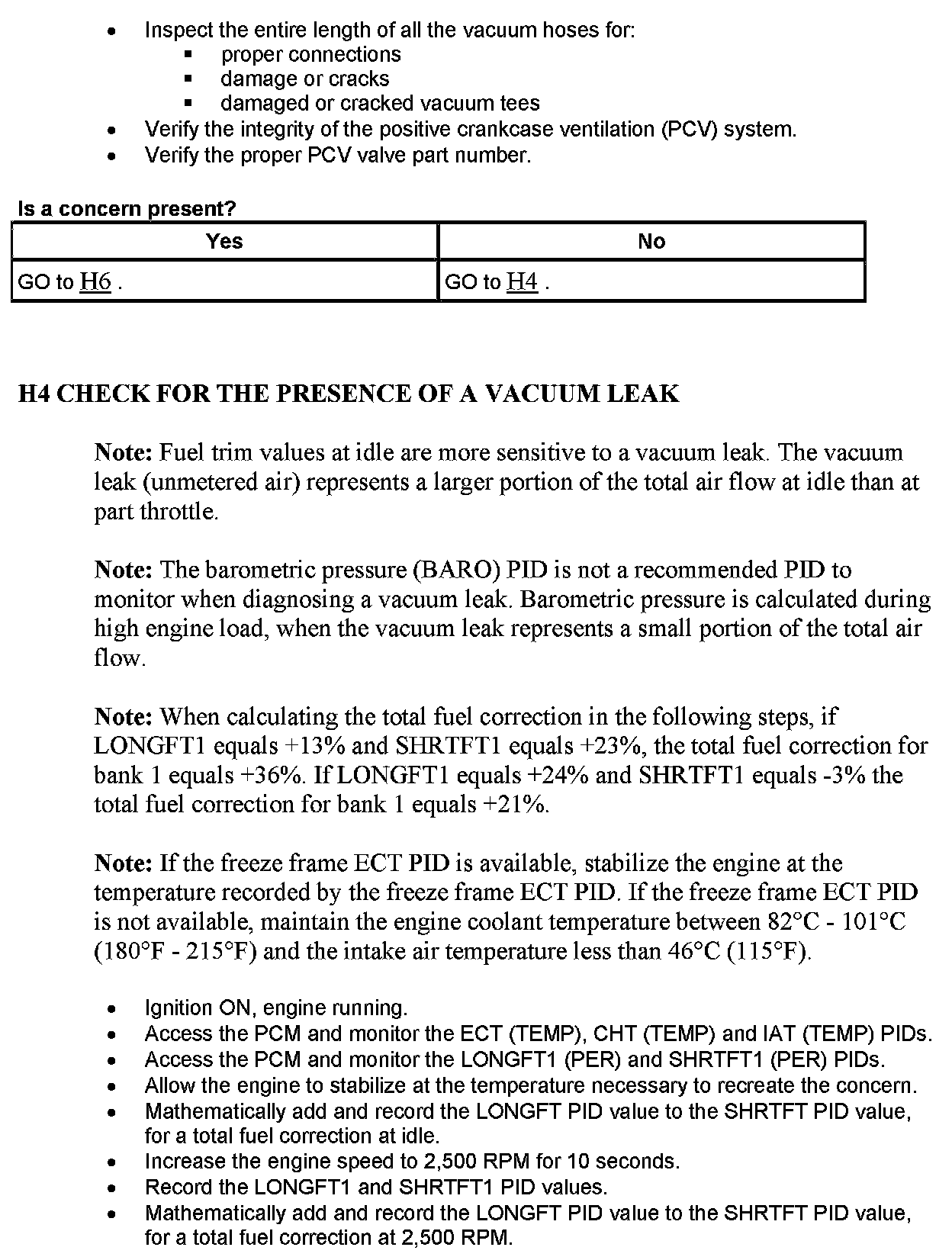

H3-H4:

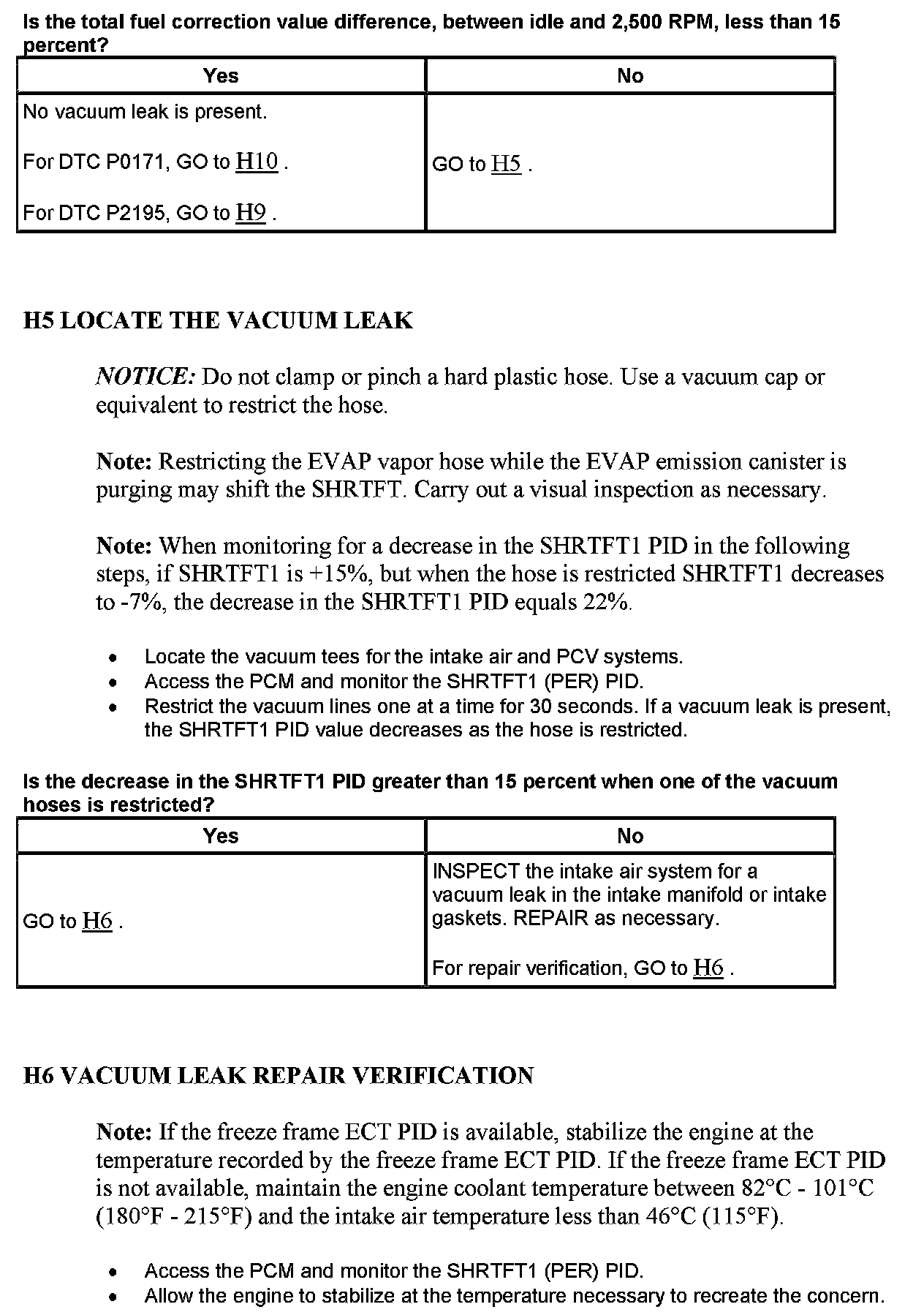

H4-H6:

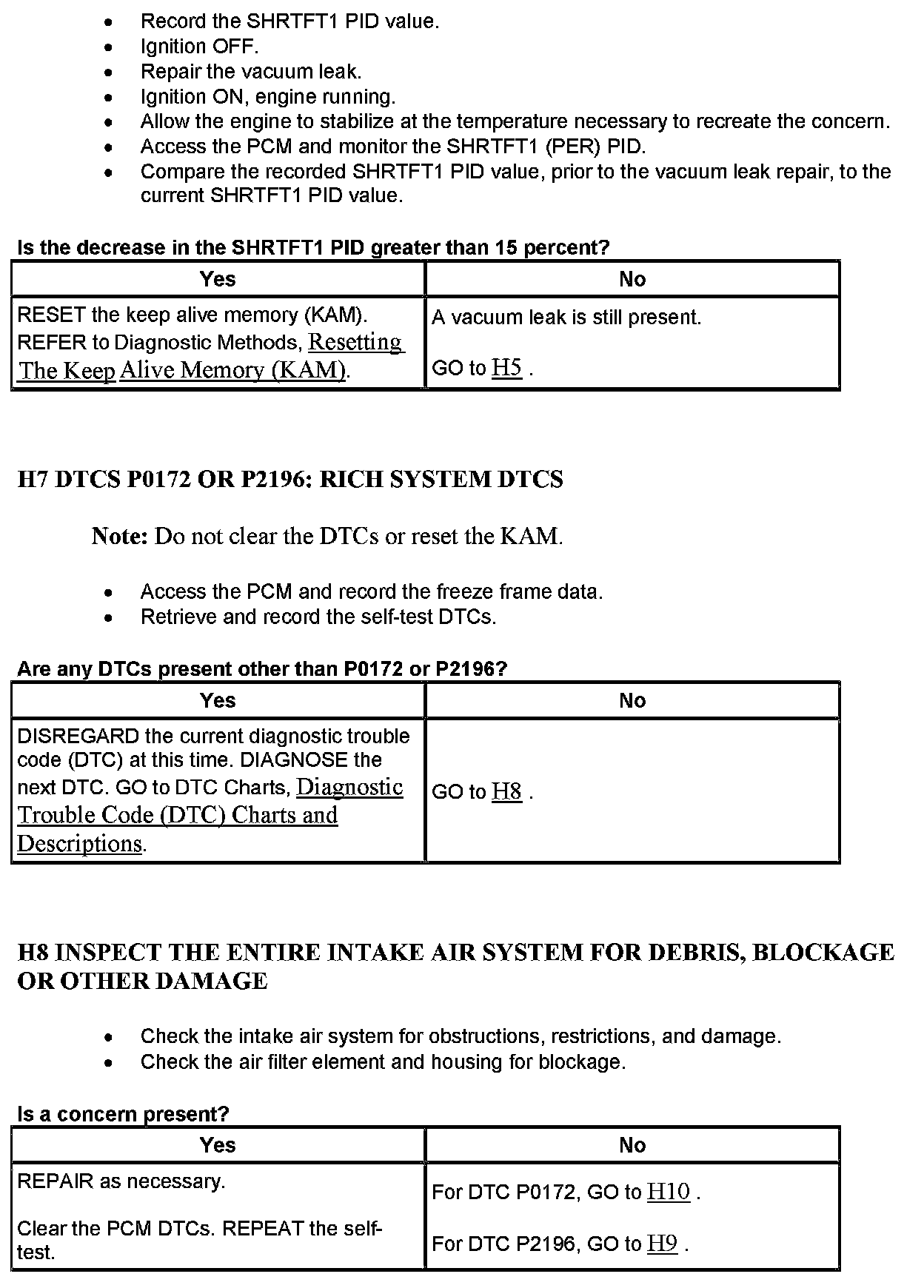

H6-H8:

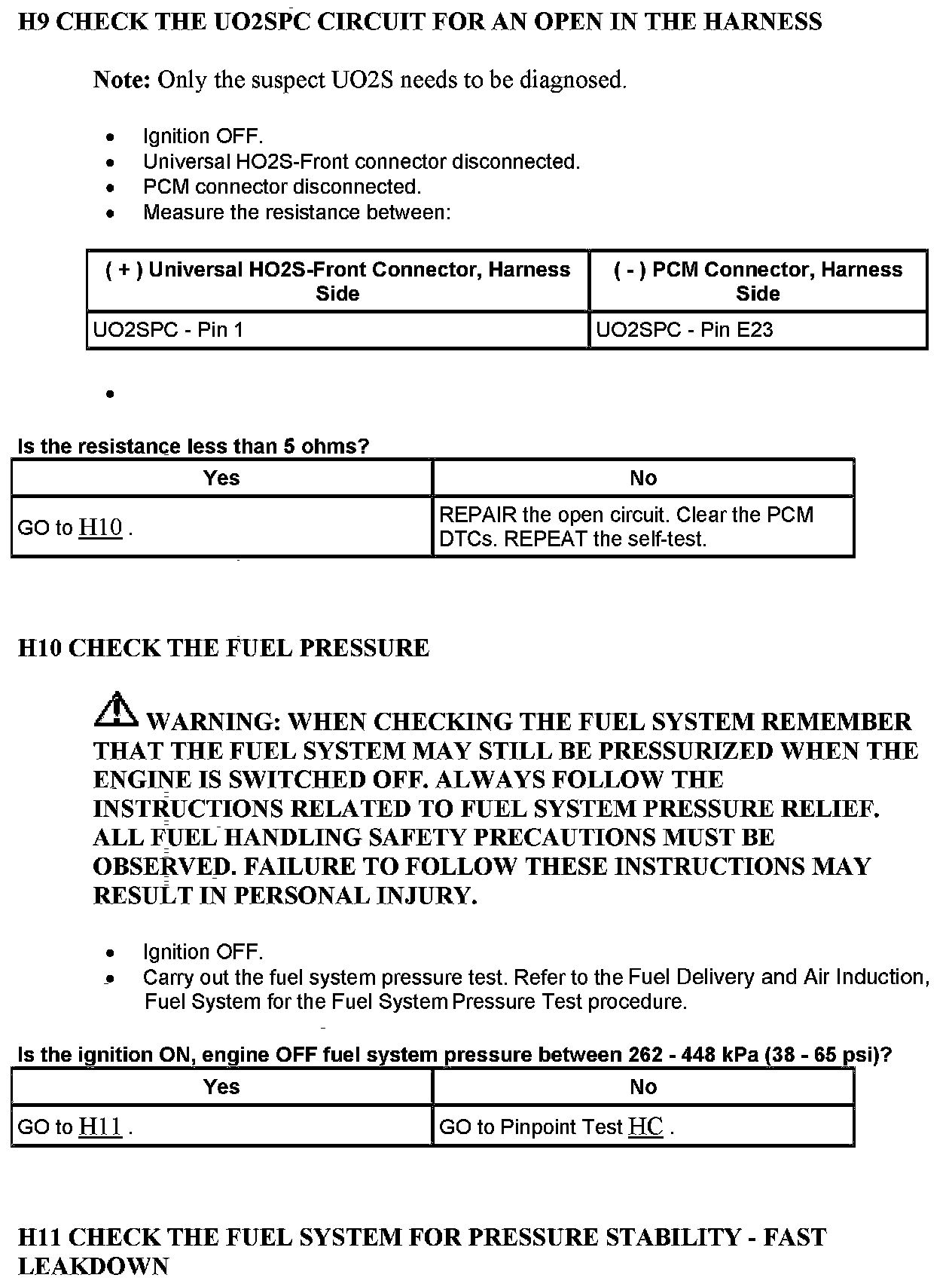

H9-H11:

H11-H13:

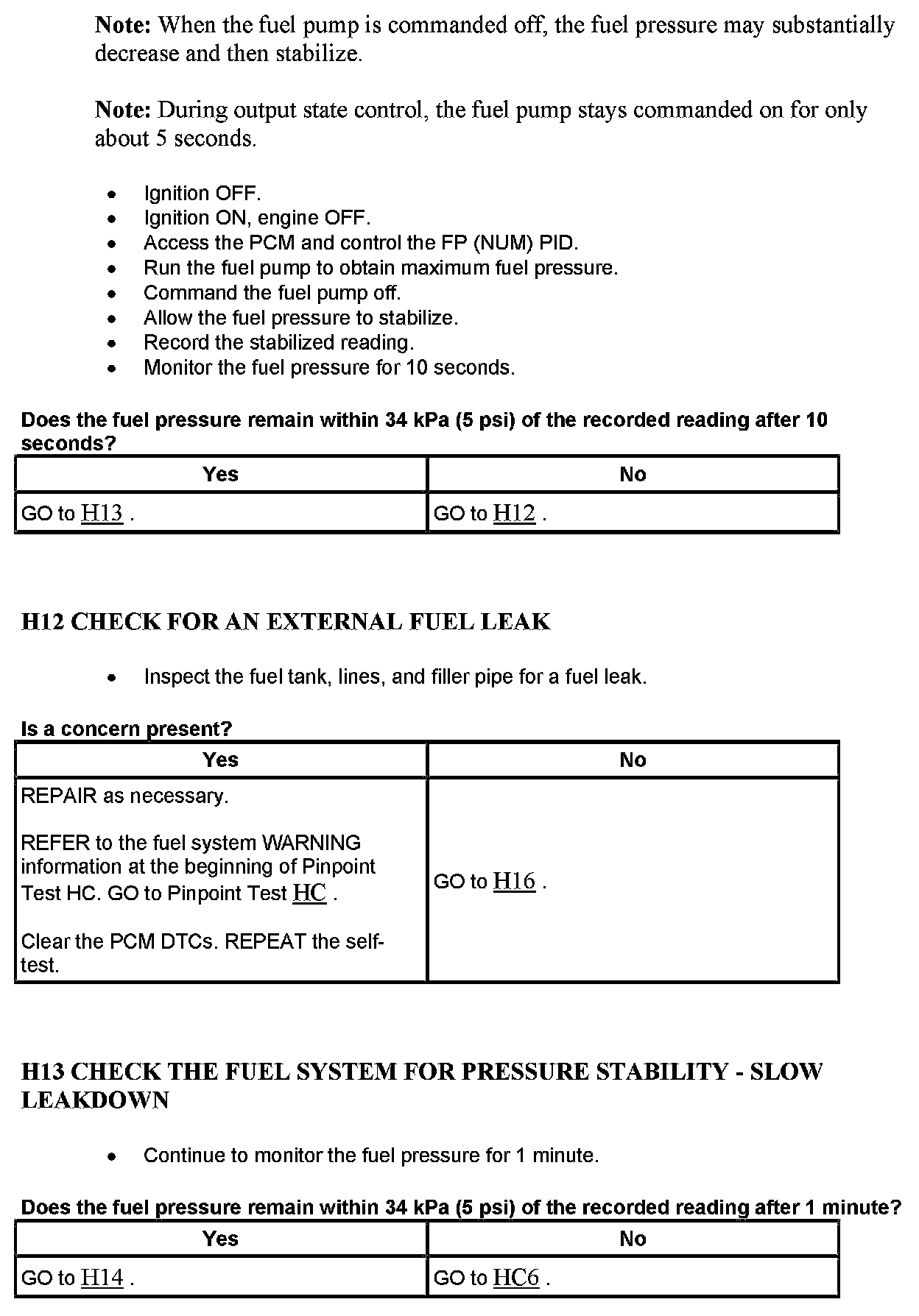

H14-H15:

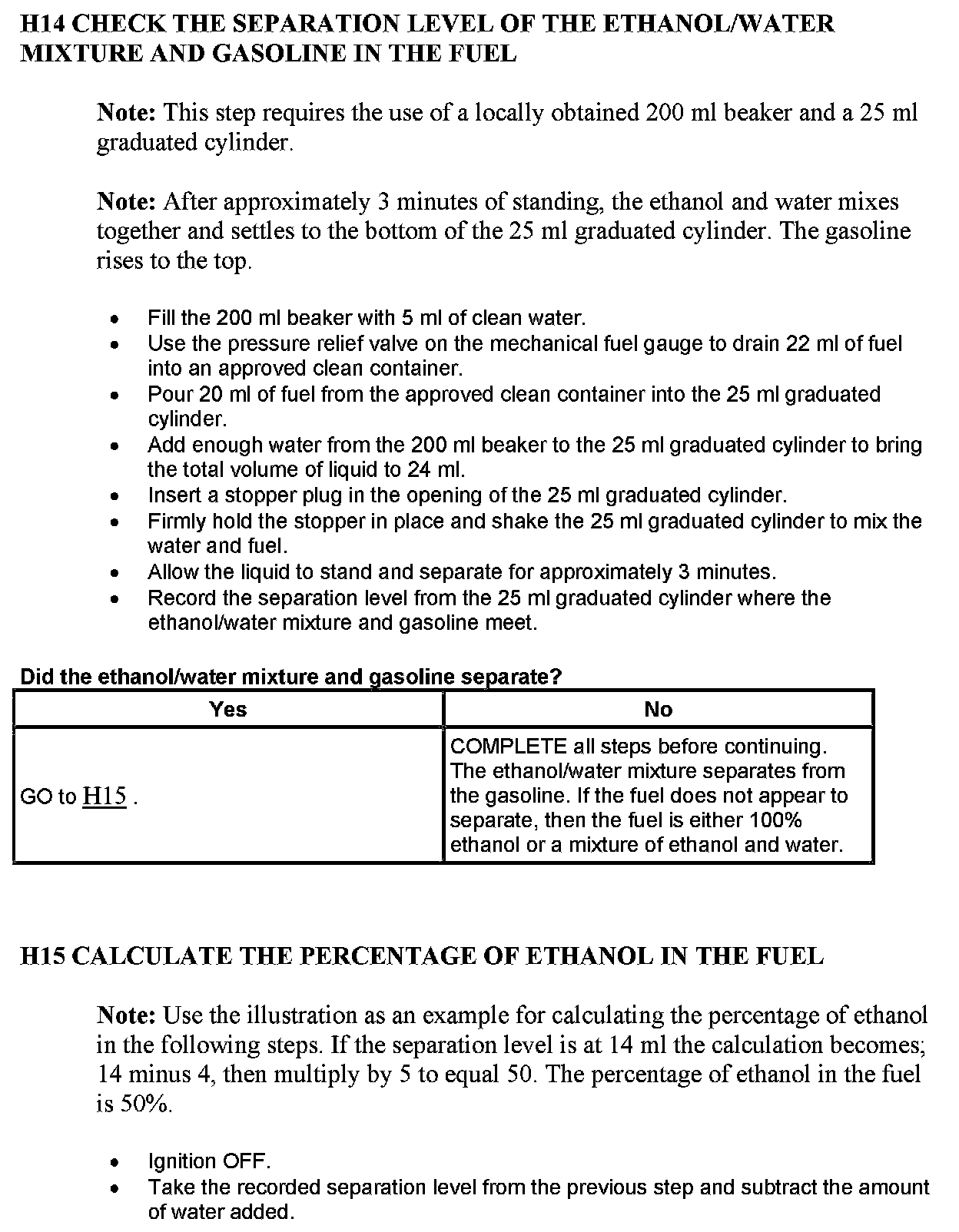

H15-H16:

H16-H18:

H18-H20:

H20-H22:

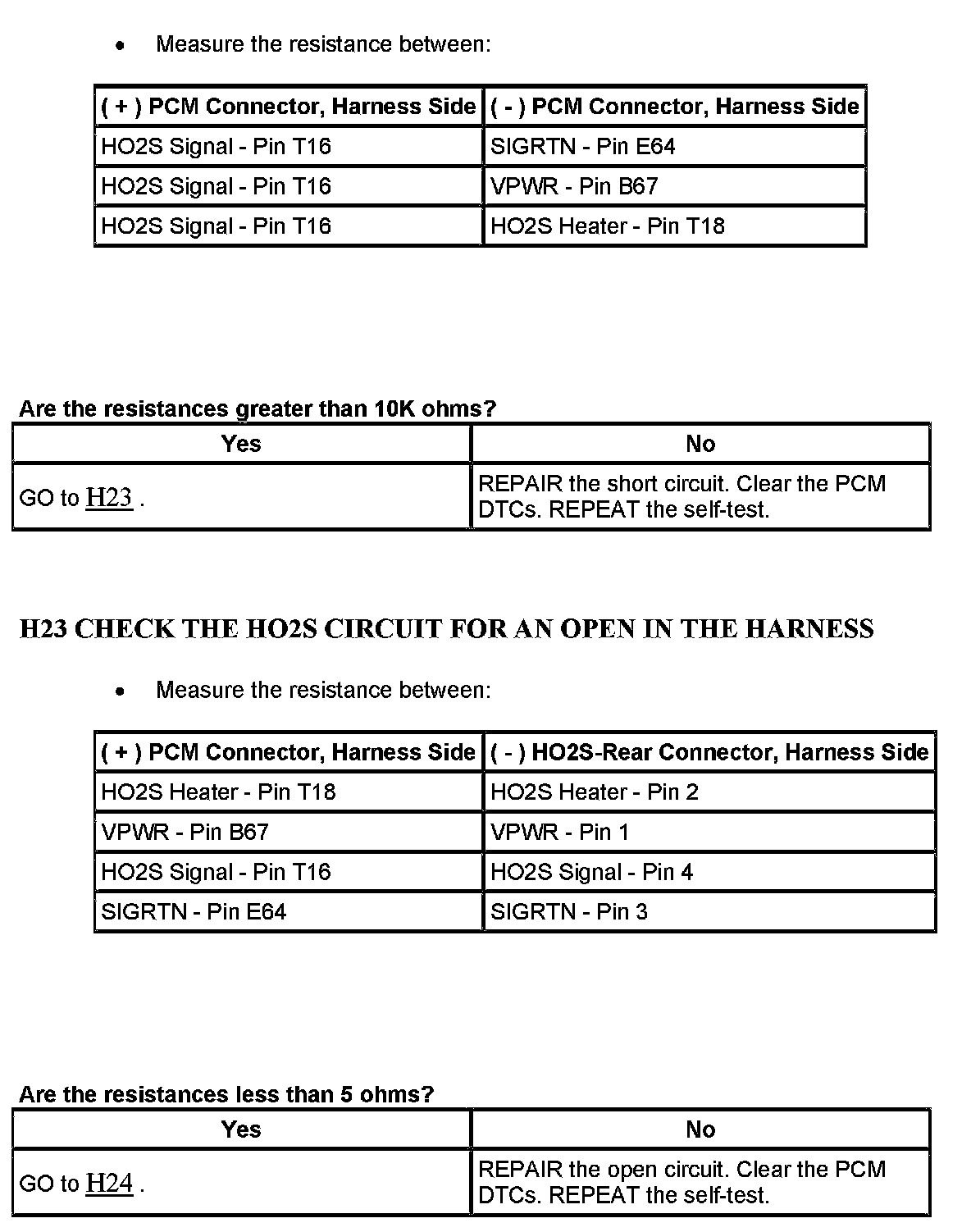

H22-H23:

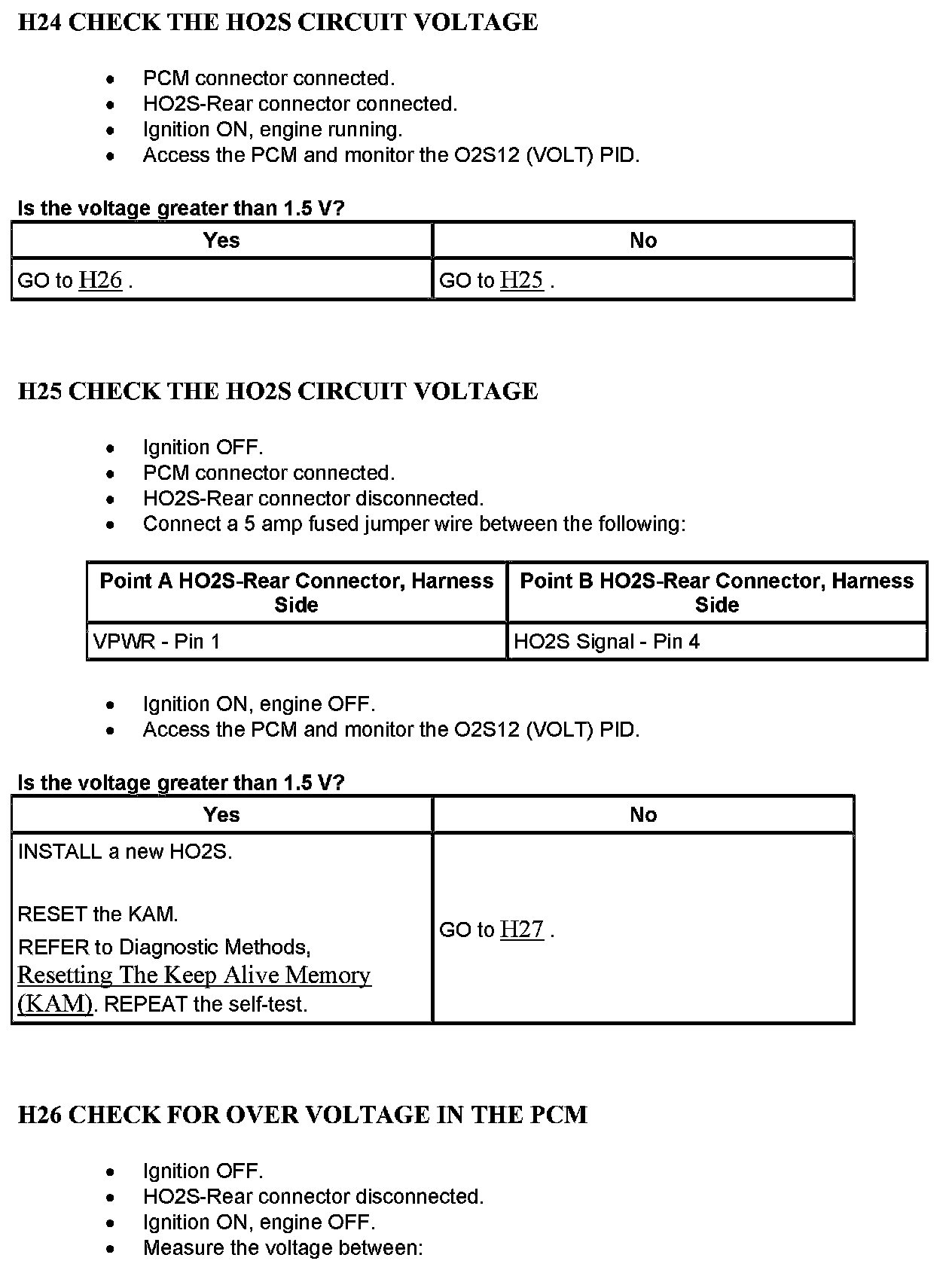

H24-H26:

H26-H27:
