Test HC: Fuel Delivery System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test HC: Fuel Delivery System
PINPOINT TEST HC: FUEL DELIVERY SYSTEM

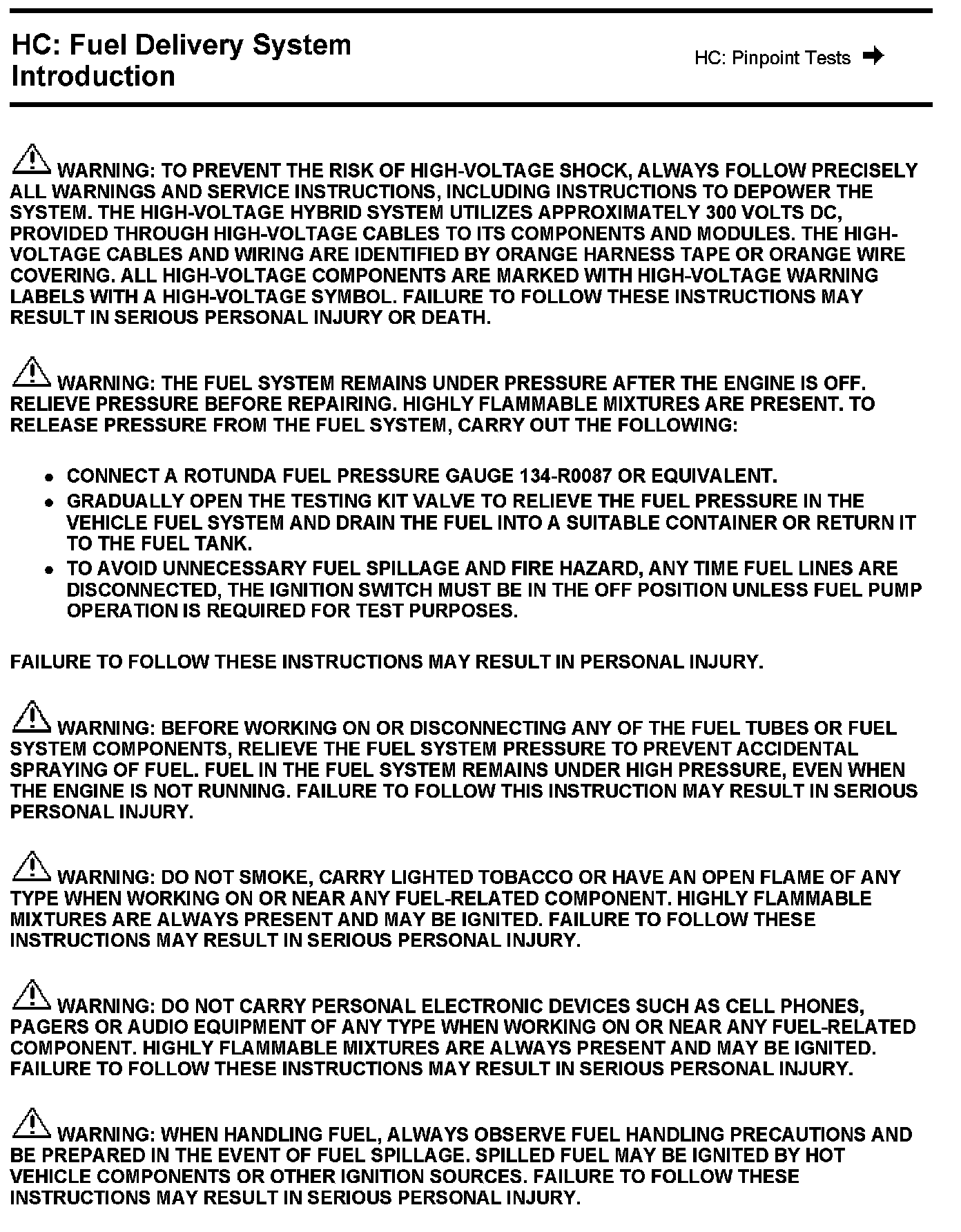

Warnings:

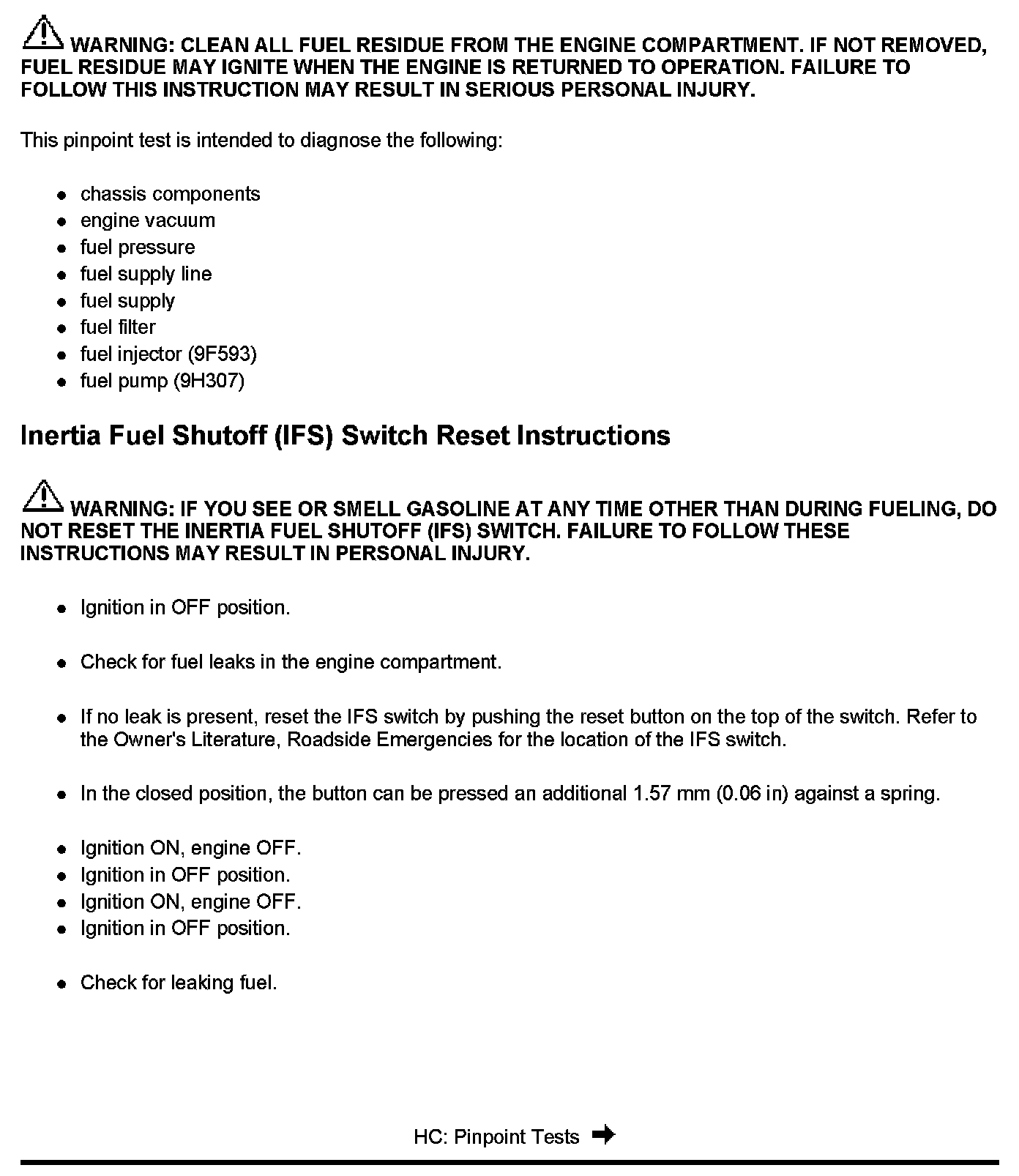

Warning And Inertia Fuel Shutoff (IFS) Switch Reset Instructions:

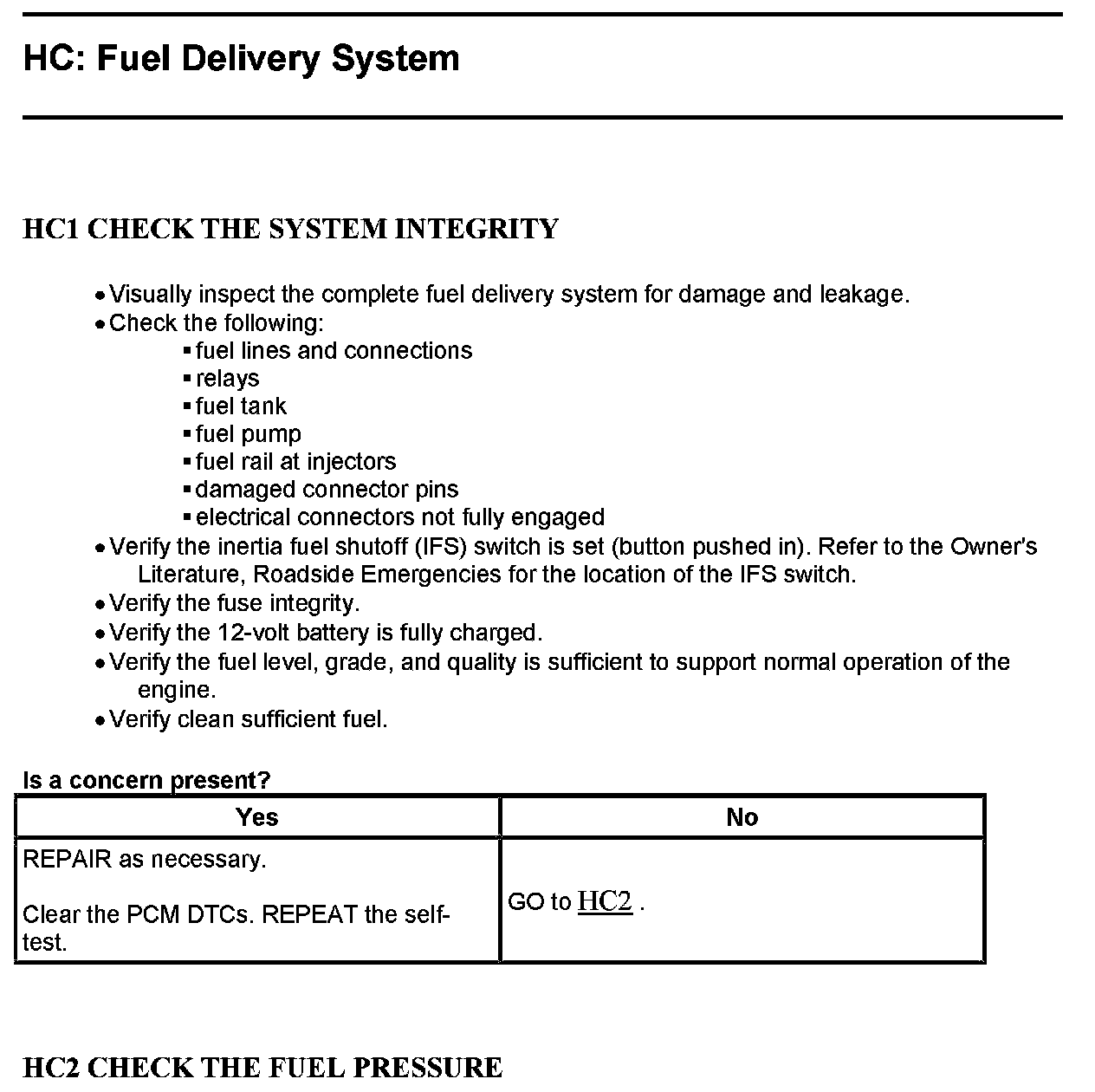

HC1-HC2:

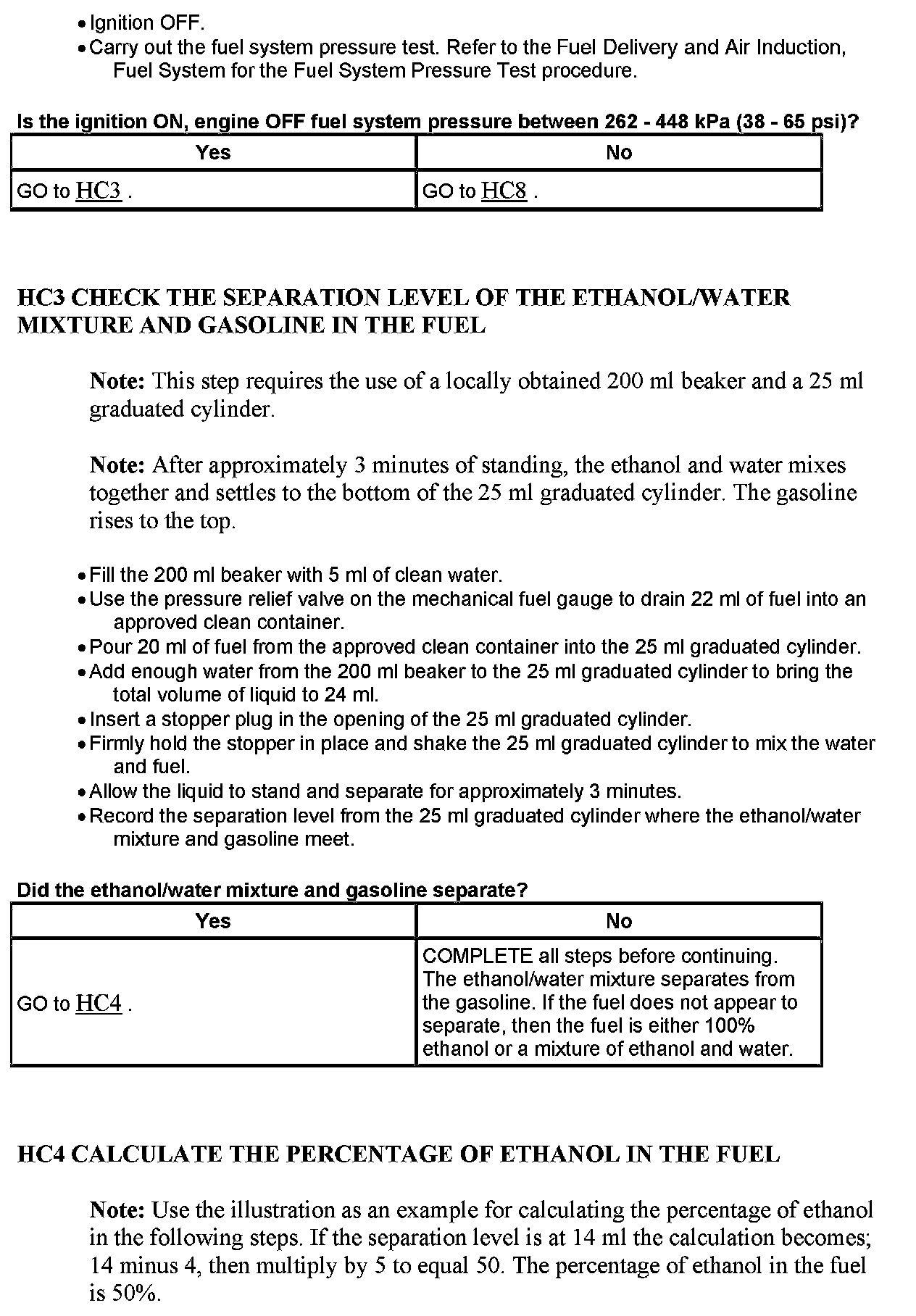

HC2-HC4:

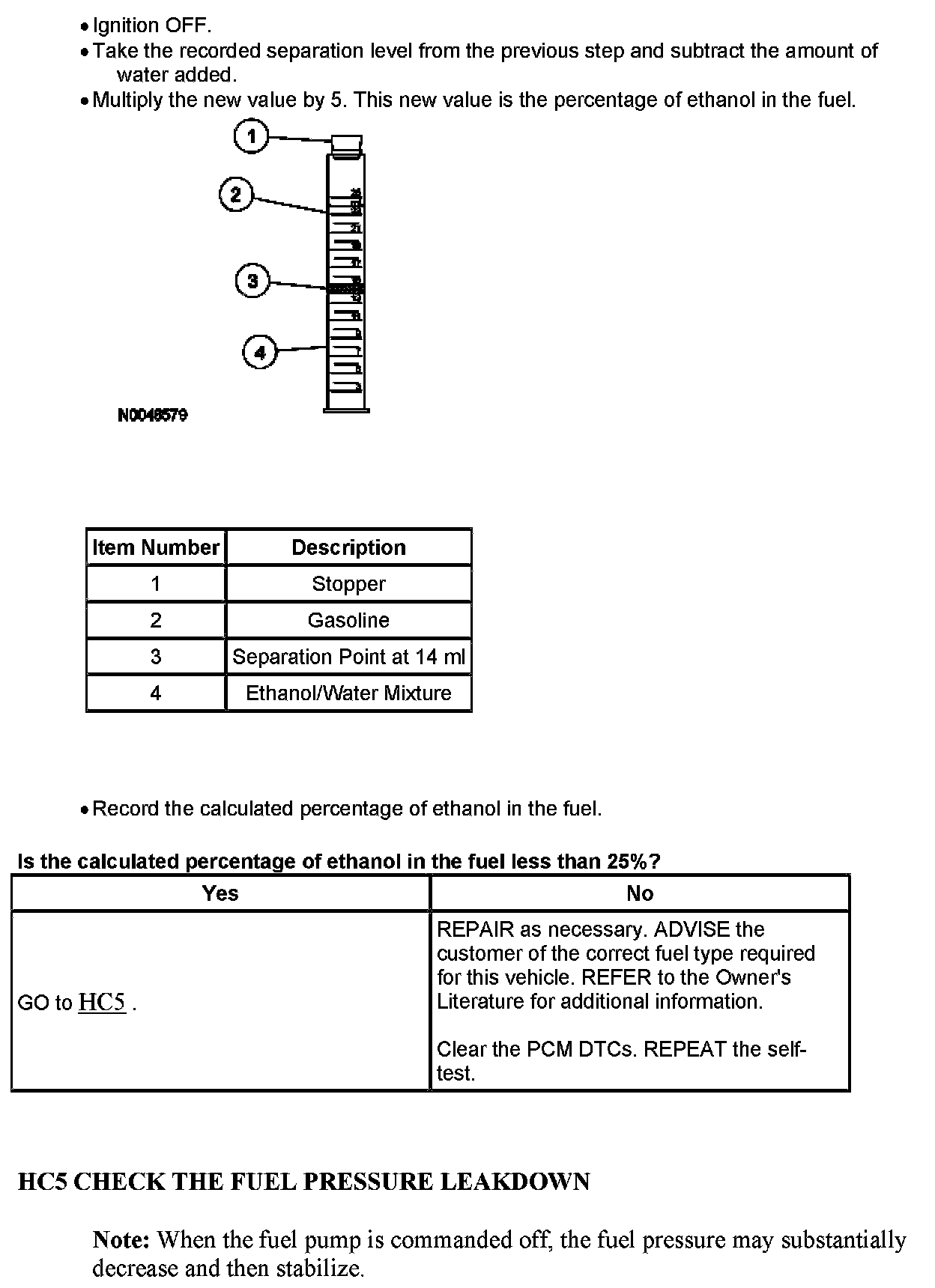

HC4-HC5:

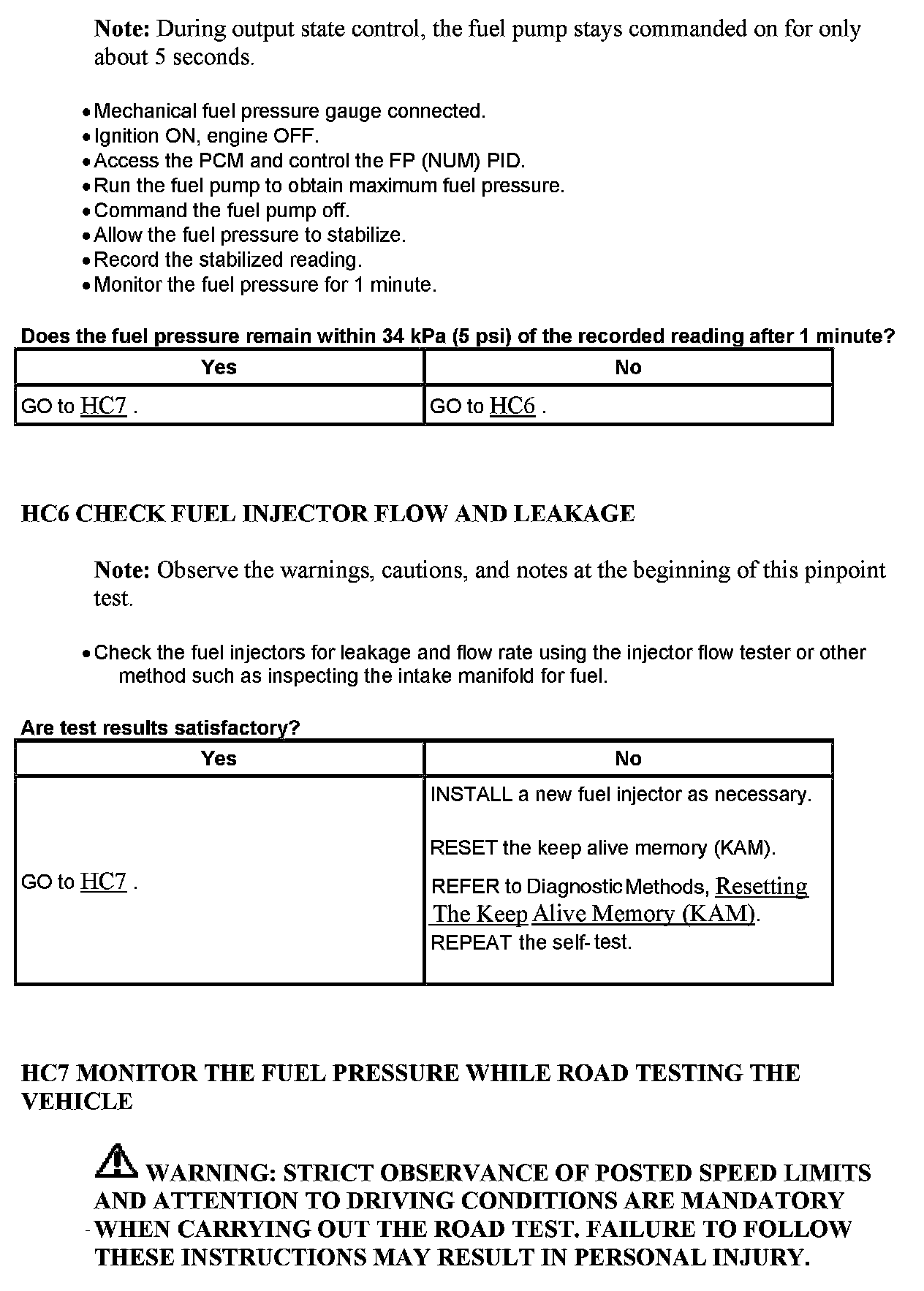

HC5-HC7:

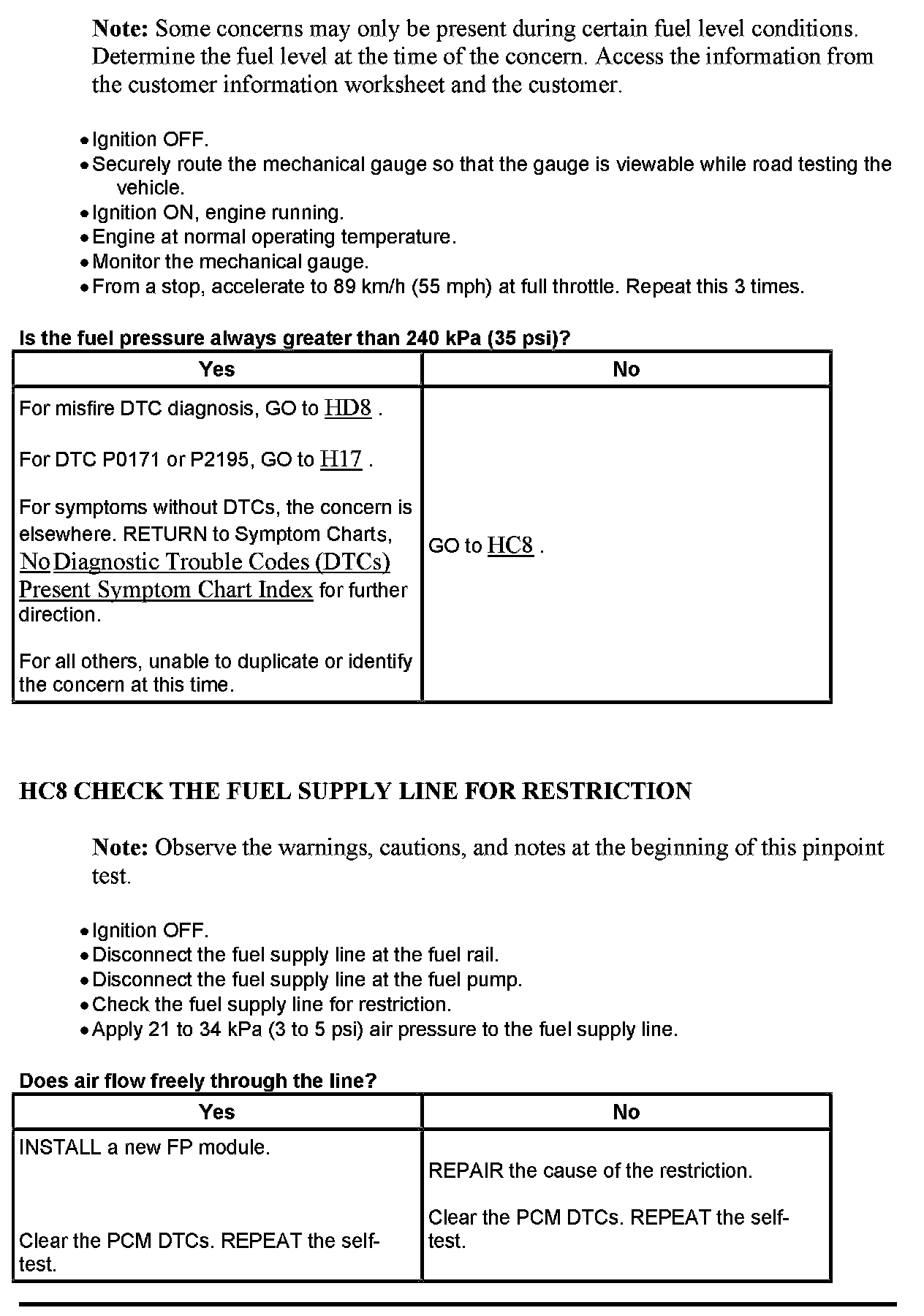

HC7-HC8:
