Front Display Interface Module Connector End View - C2407

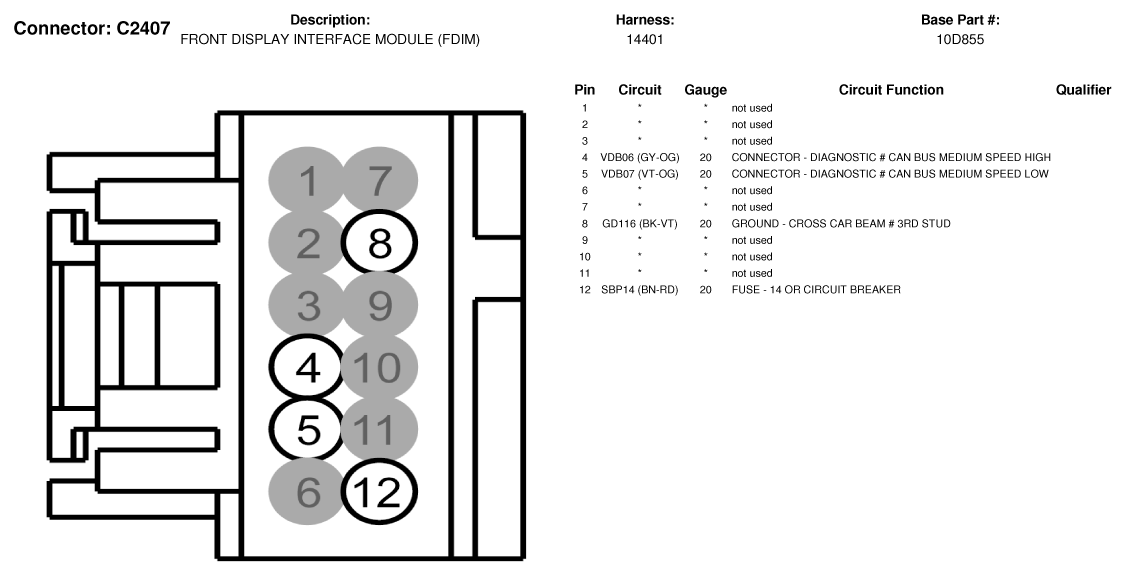

Fig 1: Front Display Interface Module Connector End View (C2407)
G07335816Courtesy of FORD MOTOR CO.
