Audio Control Module Connector End View - C240C

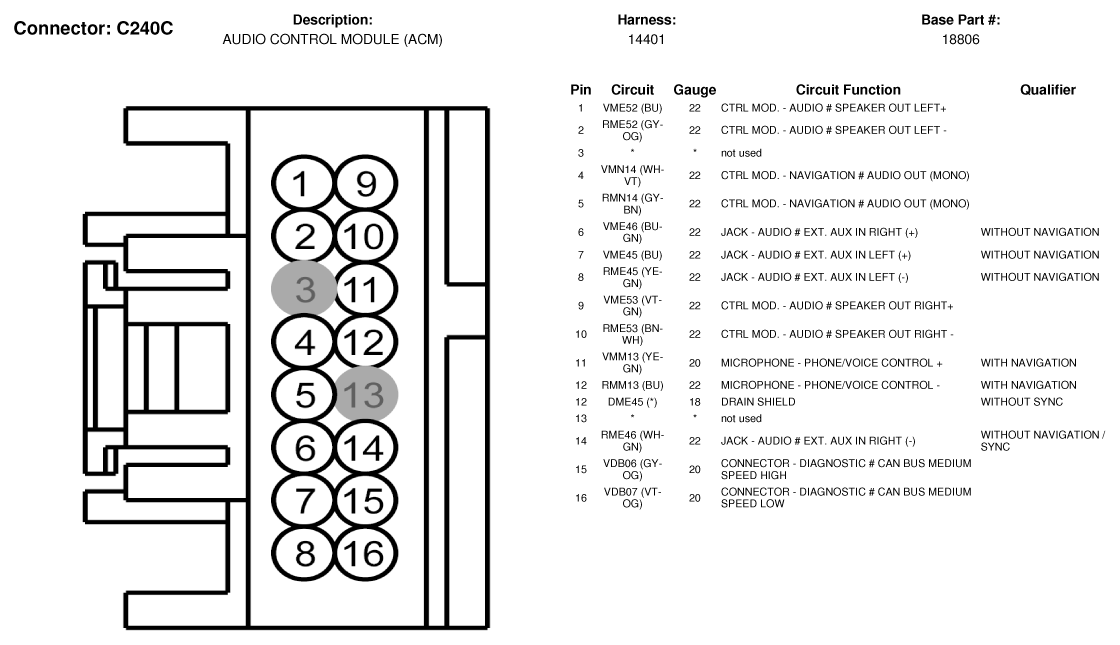

Fig 1: Audio Control Module Connector End View (C240C)

G07335578

Courtesy of FORD MOTOR CO.
