Powertrain Control Module Connector End View - C175B

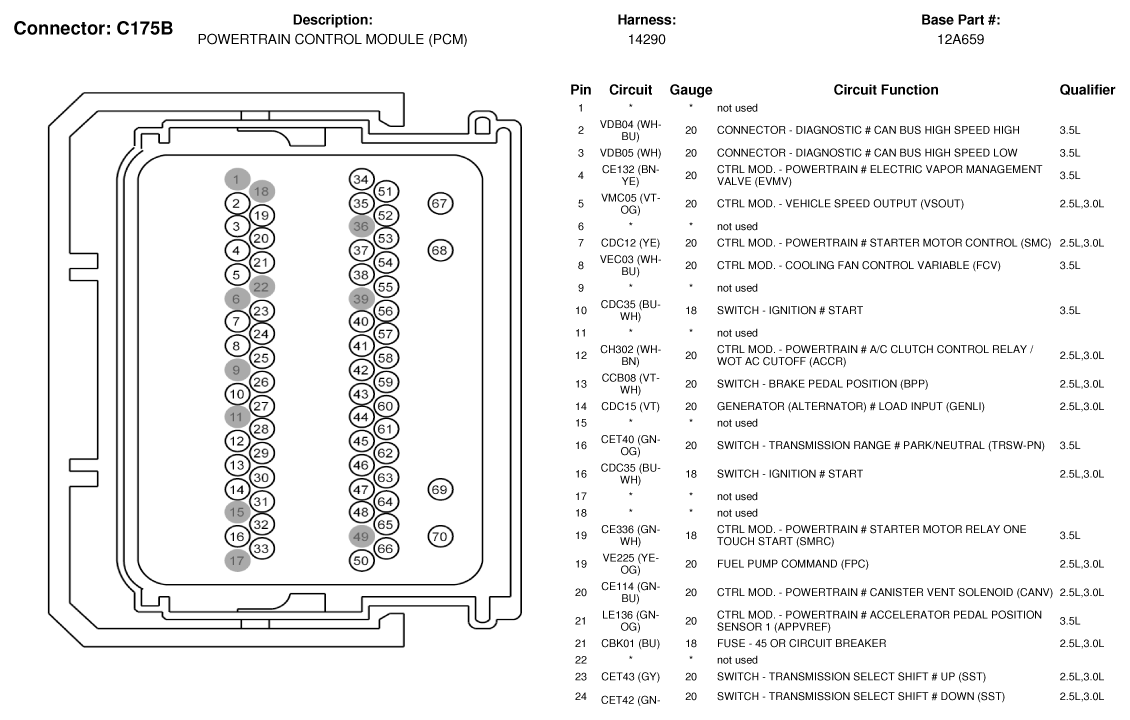

Fig 1: Powertrain Control Module Connector End View (C175B) (1 Of 4)
G07335536Courtesy of FORD MOTOR CO.

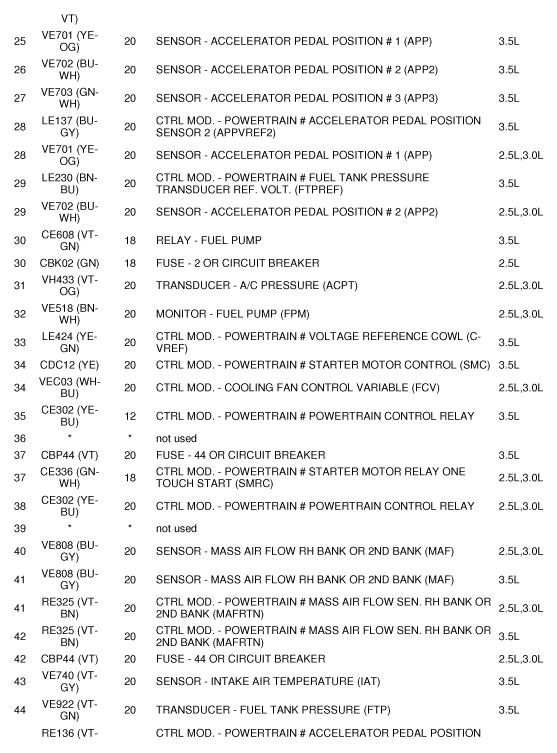

Fig 2: Powertrain Control Module Connector End View (C175B) (2 Of 4)
G07335537Courtesy of FORD MOTOR CO.

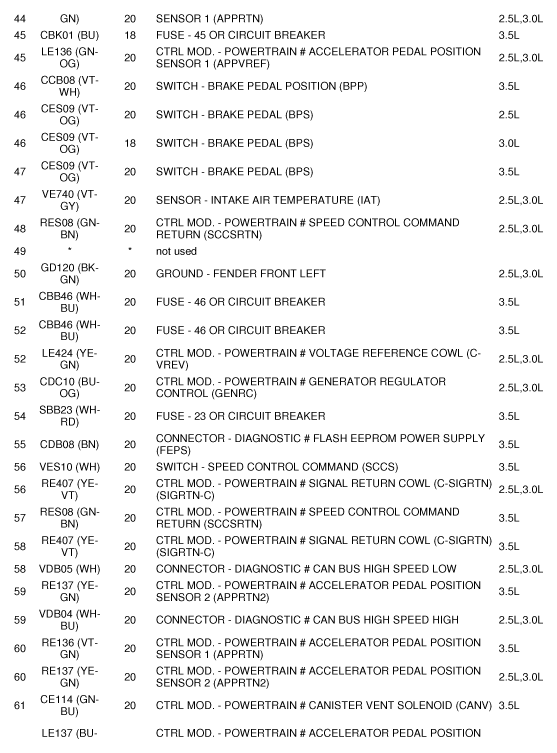

Fig 3: Powertrain Control Module Connector End View (C175B) (3 Of 4)
G07335538Courtesy of FORD MOTOR CO.

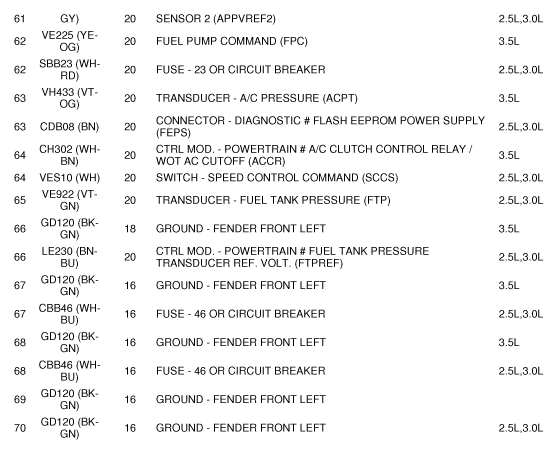

Fig 4: Powertrain Control Module Connector End View (C175B) (4 Of 4)
G07335539Courtesy of FORD MOTOR CO.
