Powertrain Control Module Connector End View - C175E

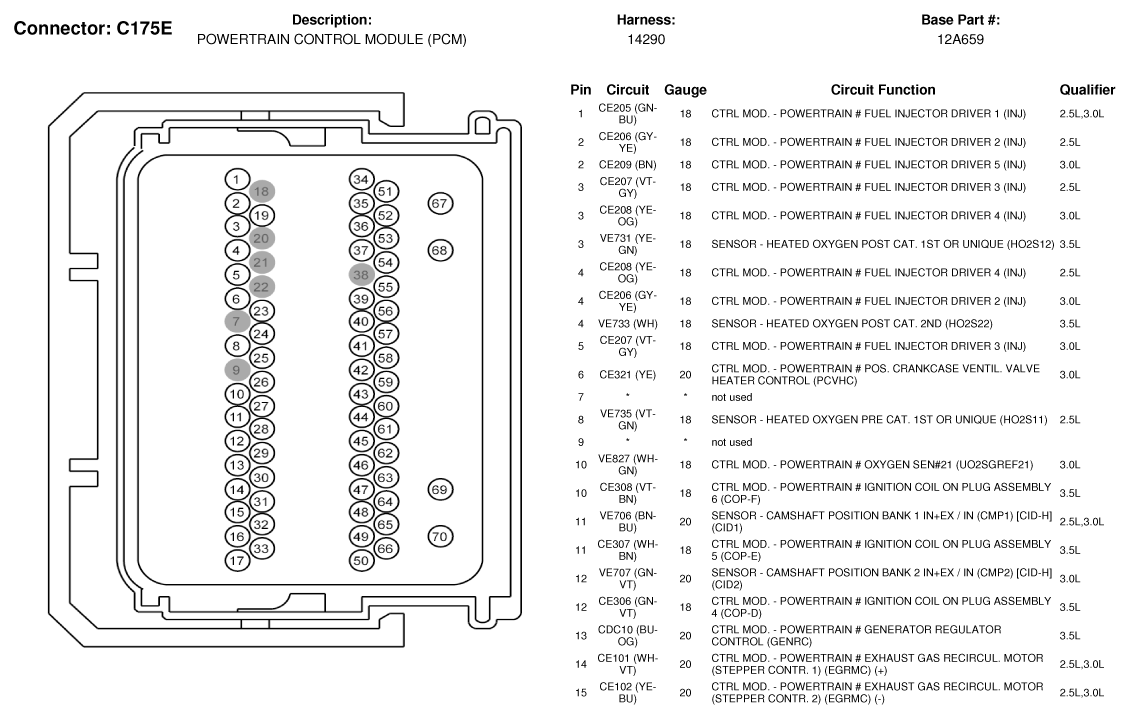

Fig 1: Powertrain Control Module Connector End View (C175E) (1 Of 4)

Courtesy of FORD MOTOR CO.

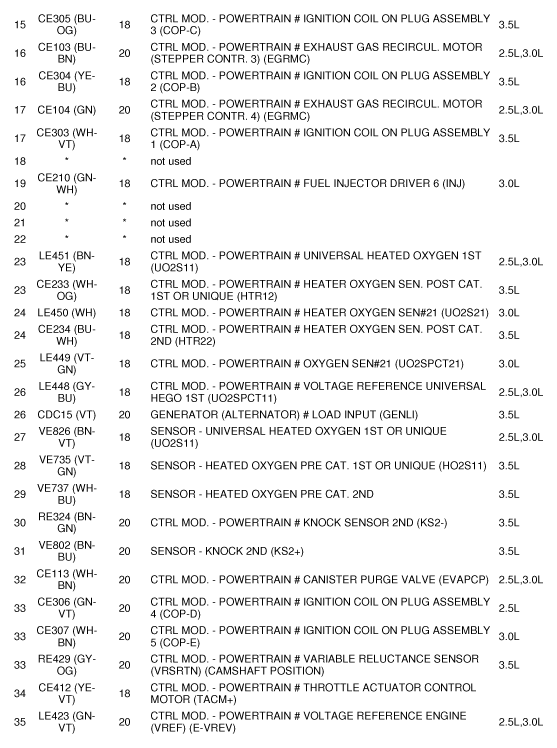

Fig 2: Powertrain Control Module Connector End View (C175E) (2 Of 4)

Courtesy of FORD MOTOR CO.

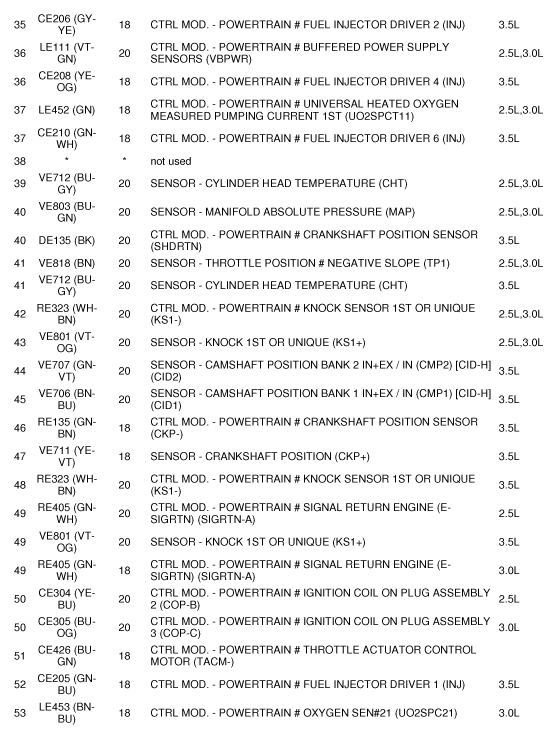

Fig 3: Powertrain Control Module Connector End View (C175E) (3 Of 4)

Courtesy of FORD MOTOR CO.

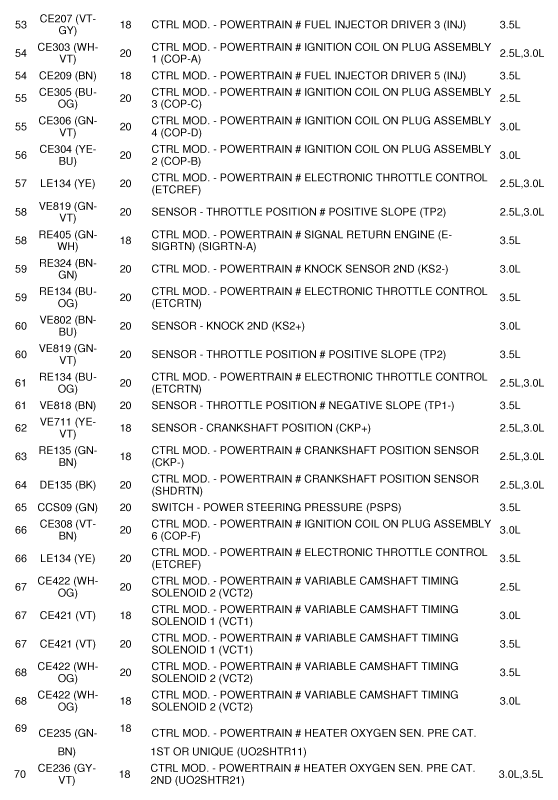

Fig 4: Powertrain Control Module Connector End View (C175E) (4 Of 4)

Courtesy of FORD MOTOR CO.
