Control Units

CONTROL UNITS LOCATION

Component Location
EEC Control Unit In passenger compartment, under cowl vent on right side. See Figure.

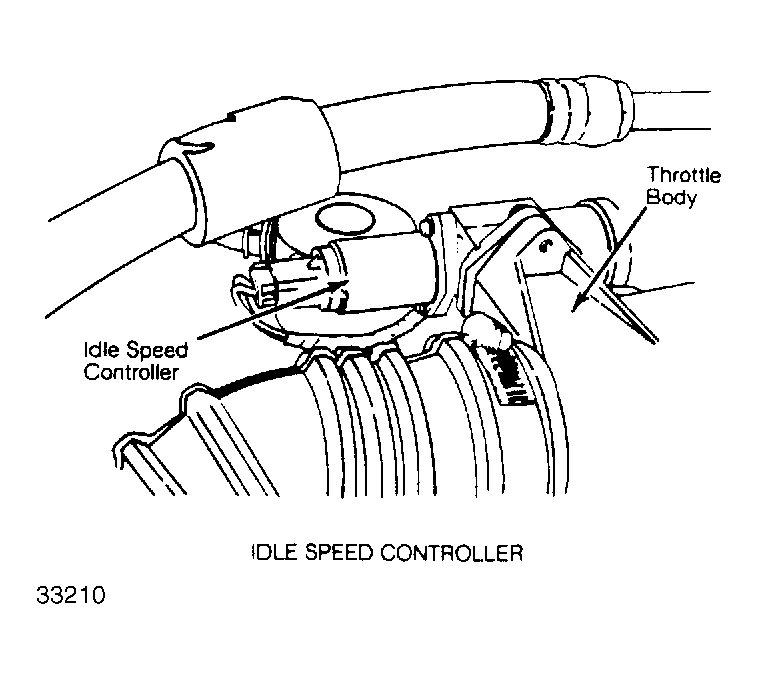

Idle Speed Controller On left side of engine. See Figure & Figure .
