Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

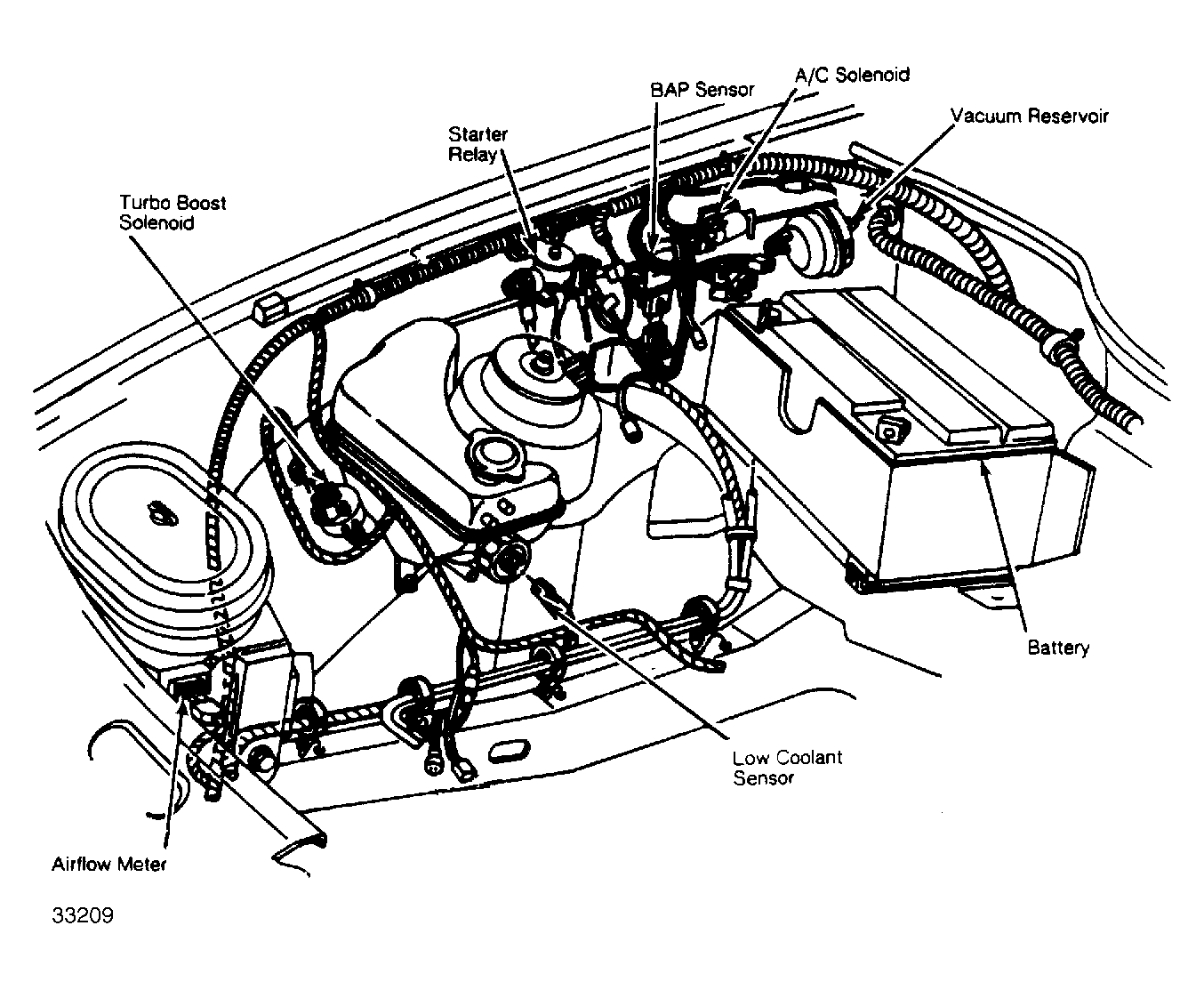

| Airflow Meter | In engine bay on right front side. See Figure. |

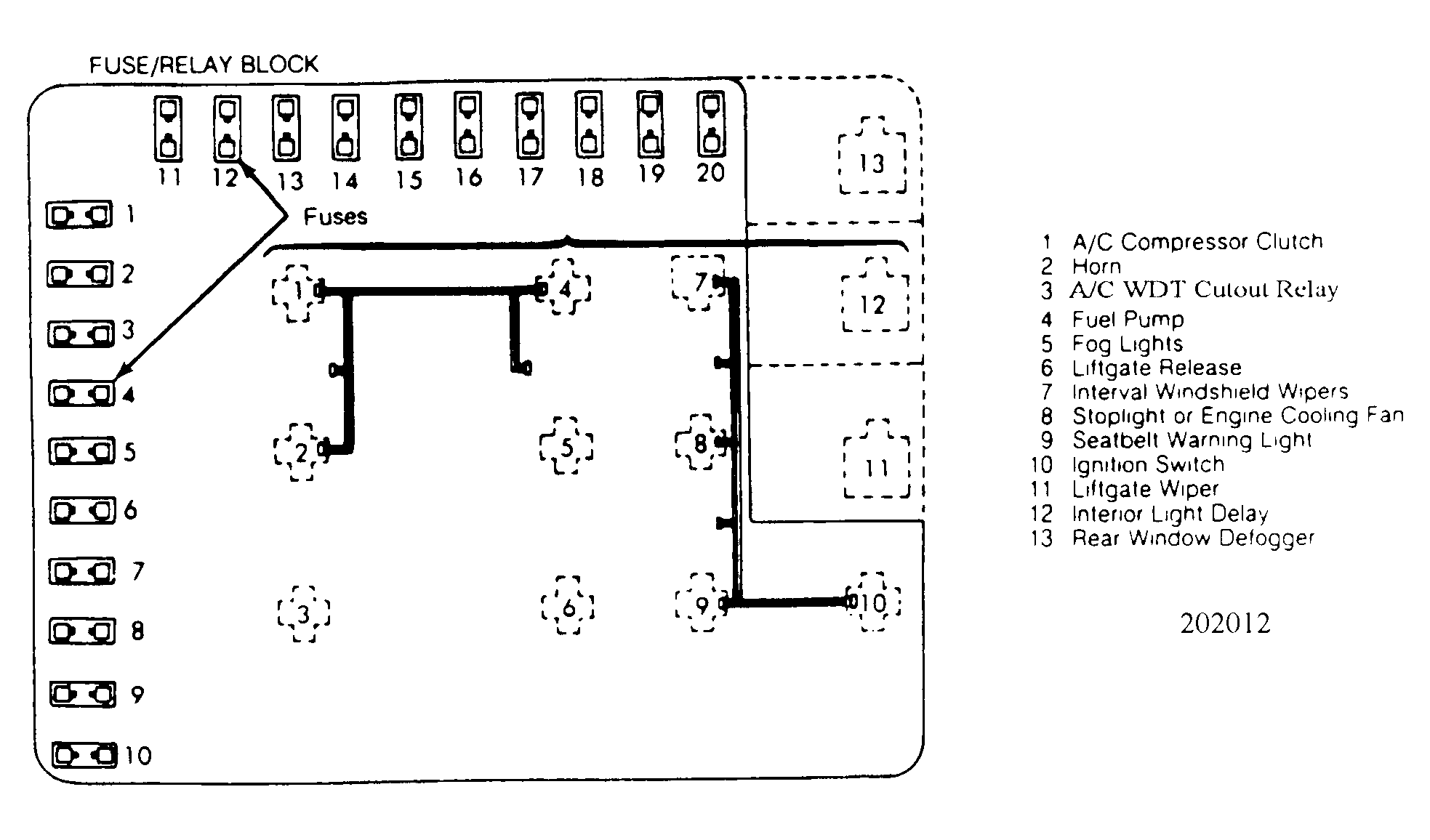

| Fuse/Relay Block | In engine bay in left rear corner. See Figure. |
| Heat Seat Resistor | Behind lower center of instrument panel, near console. |
| High Pressure Fuel Pump | Underneath vehicle, in front of fuel tank. |

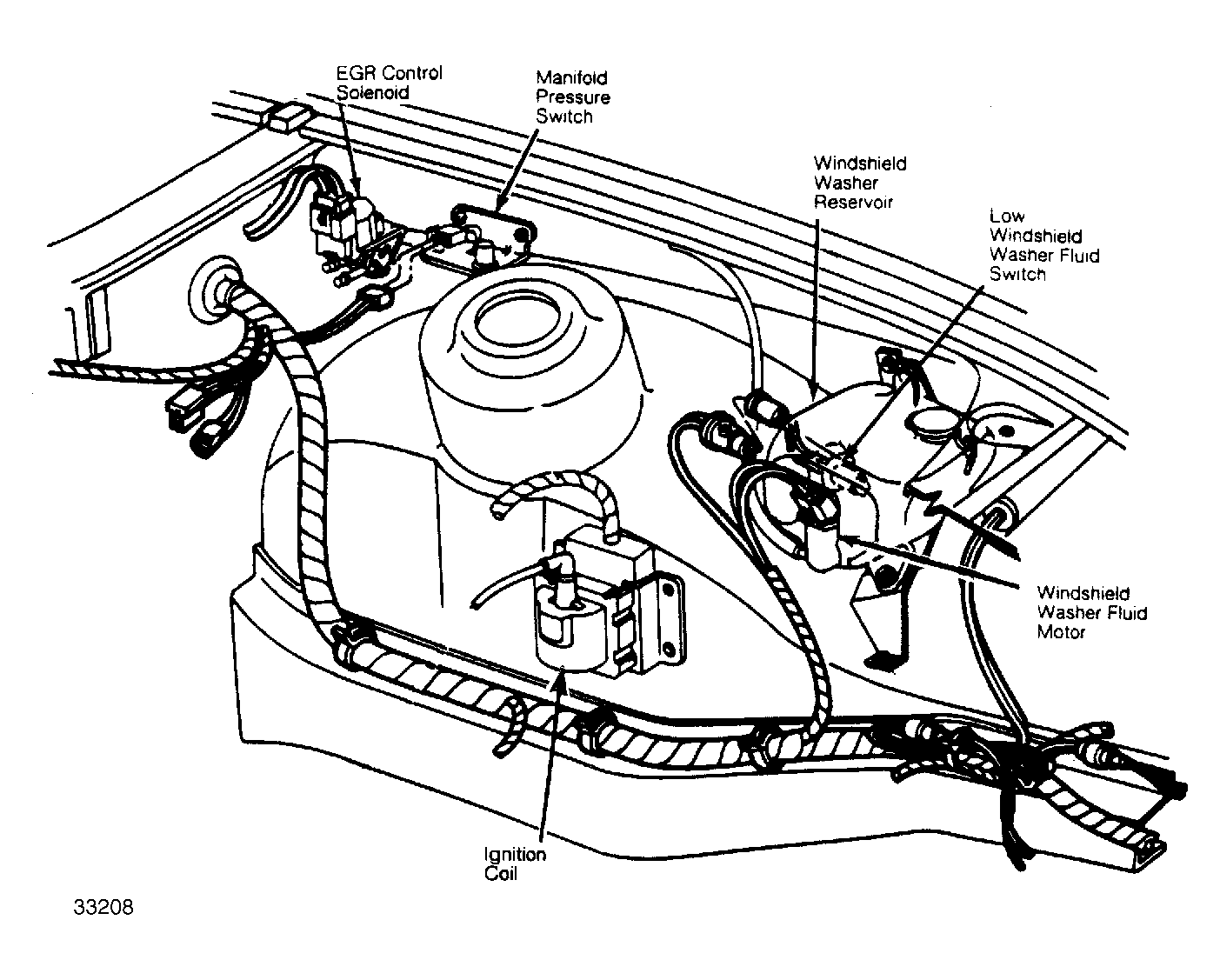

| Ignition Coil | Mounted on inner fenderwell, below shock tower. See Figure. |
| Low Pressure Fuel Pump | Inside fuel tank. |
