Headlamp Alignment Control Module: Service and Repair

Removing And Installing/Replacing Control Unit Of Headlamp Levelling Unit (LWR)







Disconnect negative lead from battery.
Remove passenger side storage tray.

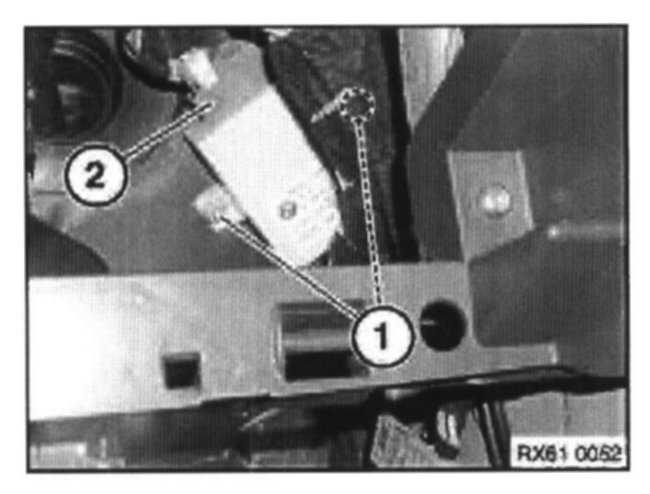

Remove nuts (1).
Tightening torque 4 Nm.
Disconnect connector (2).

Replacement only:
After replacement of the LWR module recoding is necessary.
