Standard Suspension

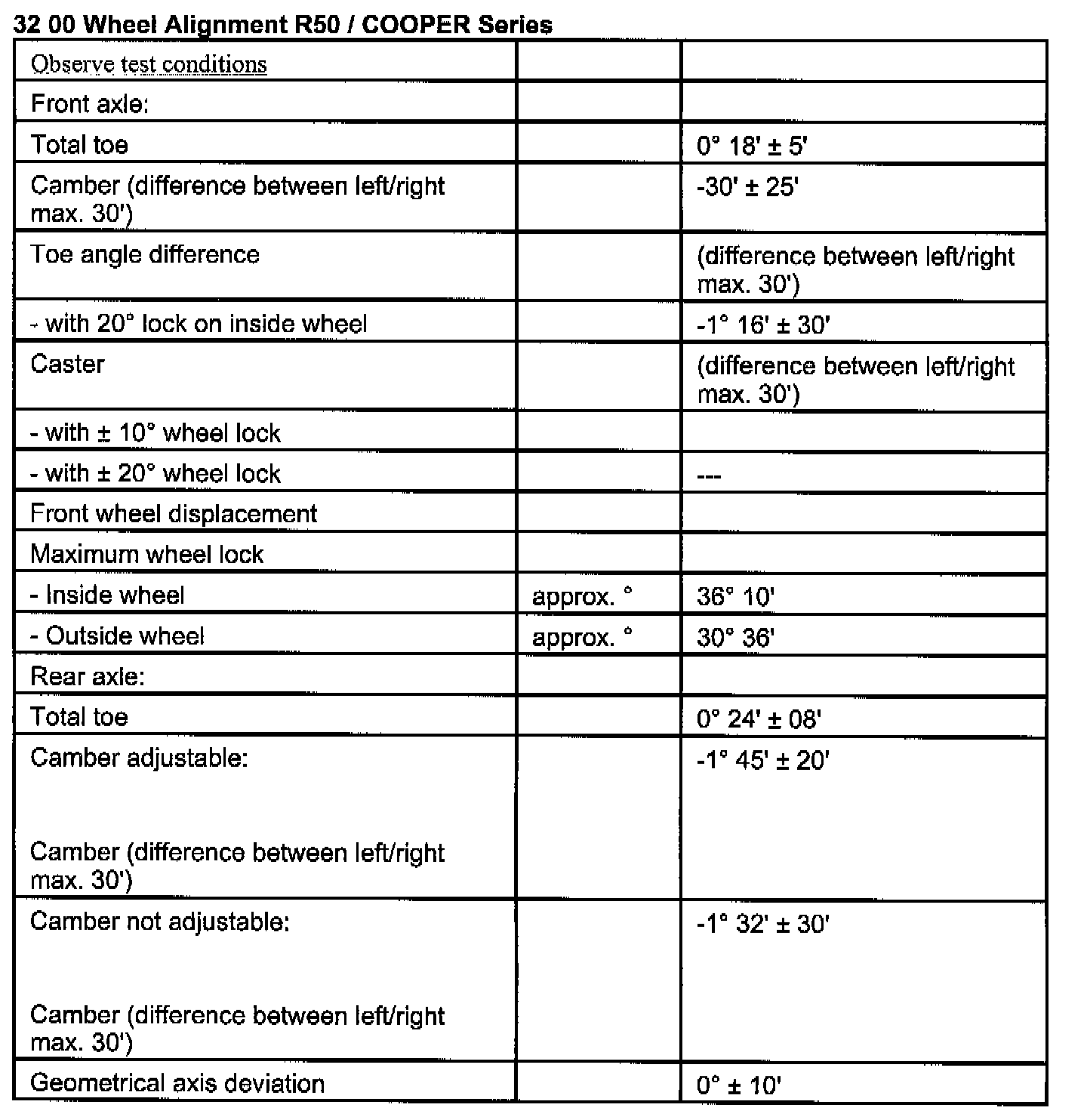

Wheel Alignment Specifications






R50 Series

Test Conditions for Chassis/Wheel Alignment Check

Observe the following test conditions prior to the chassis/wheel alignment check:
1. Correct and identical rim and tyre sizes.
2. Correct tread depth. The tread depth for each axle may differ from left to right by max. 3-4 mm.
3. Correct tyre inflation pressure (see instruction plate on car).
4. Wheel bearing clearance OK
5. Steering backlash OK
6. Condition of suspension and shock absorbers OK
