Procedures

Removing And Installing Or Replacing Control Unit
Disconnect battery.

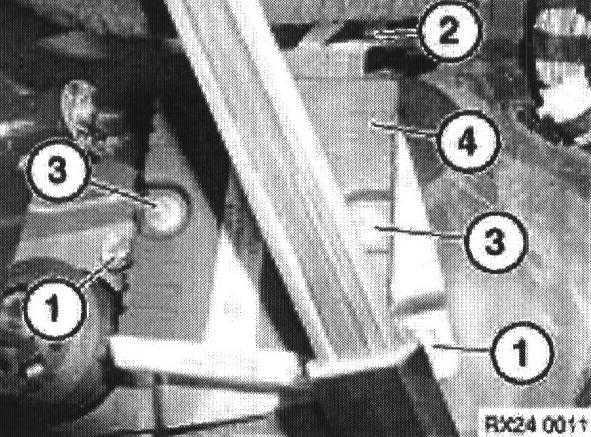

Remove nut and bolt (1) securing control unit mounting bracket.
Control module mounting bracket 10 Nm

Release control unit mounting bracket and disconnect connector (2).

Replacement Only:

Remove nuts (3) securing control unit to mounting bracket.
Control module to mounting bracket 2 Nm

Remove control unit (4) from mounting bracket.
