The Battery: Notes

The Battery location is dependent on model variation.

• MINI COOPER - Battery is located in the engine compartment
• MINI COOPER S - Battery is located in the rear luggage compartment (with BST)

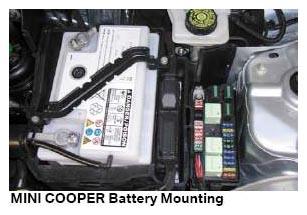

Fig 1: Mini Cooper - Battery Located In Engine Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

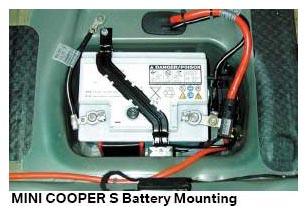

Fig 2: Mini Cooper S - Battery Located In Rear Luggage Compartment (With BST)

Courtesy of BMW OF NORTH AMERICA, INC.

All batteries used in the MINI are sealed for life and are maintenance free. A battery condition indicator which shows three battery states is located on top of the battery. The battery condition states are:

• Green - Battery is in good state of charge
• Dark (Turning to Black) - Battery requires charging
• Clear (Light Yellow) - Battery must be replaced
