COOPER S Battery Cable

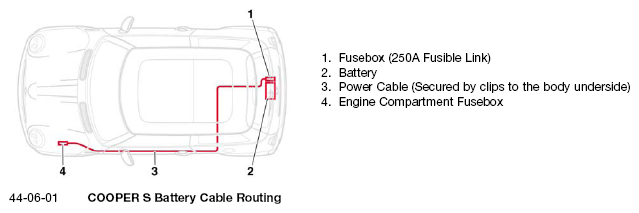

Fig 1: COOPER S Battery Cable Routing
G04724925Courtesy of BMW OF NORTH AMERICA, INC.

Workshop Hint

When disconnecting a battery always disarm the alarm and ensure the ignition and all electrical equipment is switched 'off'.

Disconnect the negative terminal first, and reconnect the positive terminal first.

Workshop Hint

Each harness, main, door or dashboard is vehicle specific. If replacing a harness, check that the replacement harness has the proper connectors for the equipment installed in the vehicle.
