Microwave Sensor (convertibles only)

The R52 MINI Convertible incorporates 4 microwave sensors for interior protection.

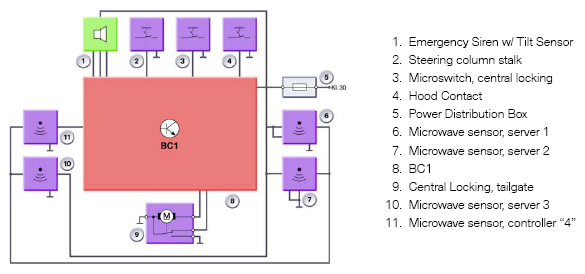

Fig 1: Microwave Sensor (Convertibles Only)
G04730212Courtesy of BMW OF NORTH AMERICA, INC.
