SERVICE ACTION 27 - CODE CONVERTIBLE TOP MODULE

SERVICE CAMPAIGN BULLETIN

SUBJECT

Service Action: Code Convertible Top Module

MODEL

R52 (Convertible)

SITUATION

The CVM (Convertible Top Module) does not go into sleep mode. This results in a high current draw when the vehicle is switched off.

If the vehicle is unused for a period of 7 - 14 days, the battery will become discharged, and it will no longer be possible to start the engine.

Copies of the customer notification letter and Q & A are attached.

To minimize customer's inconvenience caused by this Service Action, you may pick up (and deliver after repair) from the customer's home, or provide appropriate alternative transportation.

Customers will be impressed when you return their vehicles cleaned inside and out and with a full tank of gas. Reimbursement information for the vehicle fueling and valet costs can be found in the Warranty section of this bulletin.

CAUSE

CVM coding fault

AFFECTED VEHICLES

This Service Action involves R52 (Convertible) vehicles which were produced from February 21, 2006 to February 28, 2006.

In order to determine if a specific vehicle is affected by this Service Action, it will be necessary to utilize the "Service Menu" of the DCS (Dealer Communication System). Based on the response of the system, either proceed with the corrective action or take no further action.

The Chassis Number Ranges listed below are only for informational purposes and are not to be considered as the only deciding factor.

Model	Chassis Number Range
Cooper Convertible	TF64568 - TF64695
Cooper Convertible Auto	TF82756 - TF88099
Cooper S Convertible	TG14791 - TG14846
Cooper S Convertible Auto	TK55238 - TK58272

PROCEDURE

1. Recode the CVM:
   • Use Progman V 21.2 or higher.
   • Connect a battery charger to the vehicle.
   • Start Progman and select "New session".
   • Select "MINI", select R50/R52/R53.
   • Select "Load software".
   • Answer the control unit replacement query with "No".
   • Select "CVM".
   • Select "Code" - coding is carried out.
   • End Progman.
   • Disconnect battery charger.
2. Check the battery using the Midtronics battery tester:
   • Switch off all electrical consumers in the vehicle. Turn the ignition lock to position "0" and remove the ignition key. Then open and close the driver's door. Close all doors on the vehicle.
   • Connect the battery tester directly to the positive terminal of the battery (not to the starting-aid terminal).
   • Follow the instructions on the battery tester.
   • If the "Charge battery" or "Charge battery now" instruction appears, print out the results, and file the printout with the vehicle records. Charge the battery in accordance with the Repair Instructions RA 61 00 ...- "Battery".
   • If the "Replace battery" instruction appears, print out the results, and file the printout with the vehicle records. Replace the battery in accordance with the Repair Instructions RA 61 21 010 - "Remove and refit the battery".
     • Reinitialize both power windows. To initialize, raise the window glass and keep the switch depressed in the "Lift" position for approx. 5 seconds and then release. Refer to repair instruction RA 67 62..( Notes on initializing power window unit (front).
   • Enter the test code from the battery tester printout in the comment box of the warranty claim.

PARTS INFORMATION

Part Number	Description	Quantity
61 21 6 920 804	Exide Battery	1

LABEL INSTRUCTIONS

This Service Action has been assigned code number 27.  After the vehicle has been checked, and corrected if necessary, obtain a label (MD 20-036) and:

1. emboss your MINI dealer warranty number in the middle of the label (1);
2. punch out code number 27  printed on the label (2) and,
3. affix the label to the B  pillar as shown.

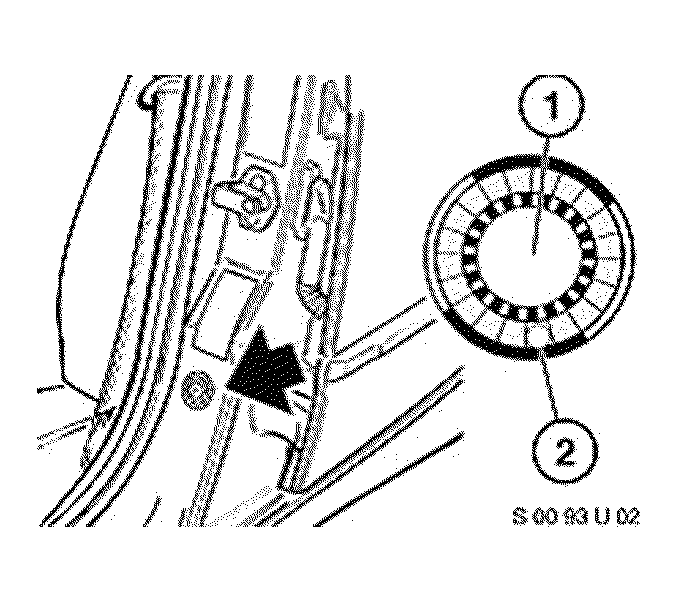

   Fig 1: Service Action Label



If the vehicle already has a label from a previous Service Action/Recall Campaign, affix the new label next to the old one. Do not affix one label on top of another one because a number from an underlying label could appear in the punched-out hole of the new label.

WARRANTY INFORMATION

Reimbursement for this Service Action will be via normal claim entry  utilizing the following information.

Defect Code:  00 61 48 02 00

Before delivery of the vehicle to the customer.
Job Description	Code the CVM and check the battery condition
Labor Operation:	00 56 823
Labor Allowance:	4 FRU
Job Description	Code the CVM, check the battery condition and recharge the battery
Labor Operation:	00 56 824
Labor Allowance:	4 FRU
Job Description	Code the CVM, check the battery condition and replace the battery
Labor Operation:	00 56 825
Labor Allowance:	6 FRU
After delivery of the vehicle to the customer.
Job Description	Code the CVM and check the battery condition
Labor Operation:	00 56 146
Labor Allowance:	6 FRU
Job Description	Code the CVM, check the battery condition and recharge the battery
Labor Operation:	00 56 147
Labor Allowance:	6 FRU
Job Description	Code the CVM, check the battery condition and replace the battery
Labor Operation:	00 56 148
Labor Allowance:	7 FRU

Only one of the job numbers listed may be billed.

Enter the test code from the battery tester printout in the comment box of the warranty claim and file the battery tester printout with the vehicle records.

MINI RE-FUELING COSTS

MINI a Division of BMW of North America, LLC, will provide reimbursement to have the gas tank topped off once, as required, for each vehicle affected by this Service Action.

Defect Code:  85 99 00 33 NA - Refuel MINI (Customer vehicles only)

Sublet:  Actual cost to top off fuel tank

Sublet Code:  4

Please attach the fuel purchase receipt to the repair order to document cost.

VALET COSTS

MINI a Division of BMW of North America, LLC, will provide reimbursement for vehicle valet services (pick up & delivery) for each vehicle affected by this Service Action. Attach the appropriate receipt to the repair order.

Defect Code:  99 99 77 77 NA - Valet Service for MINI

Sublet:  $25.00

Sublet Code:  4

RENTAL VEHICLES

Dealers participating in the MINI Dealer Administered Customer Assistance Program may self-authorize claims for reimbursement of rental costs from independent rental agencies in certain situations.
