Output Stimulator

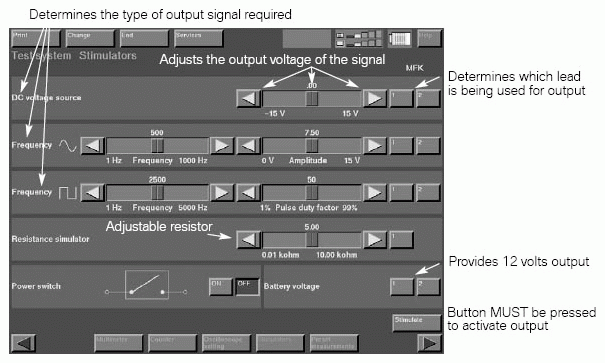

The stimulation function of the multimeter can be used to provide an output signal from the DISplus to test various components or vehicle wiring. MFK 1 and the small leads of MFK 2 are used to conduct the output signal. After selecting the cable, press the Stimulate button in the right lower corner to activate.
The following signal types may be simulated with this function:
- DC Voltage from 0 to 15 Volts
- AC Voltage from 1 Hz to 1 KHz and 0 to 15 Volts
- Digital frequency from 1 Hz to 5KHZ and 0 to 100% duty cycle
- Resistance from 0 to 10Kohm (MFK 1 only)
- DC voltage using on/off switch
