Wiper Stalk Switch

Coded ground signals are input to the BC1 from the Wiper Stalk Switch to accommodate wiper functions. Switched grounds are also provided to request washer (front or rear) and rear wiper activation.

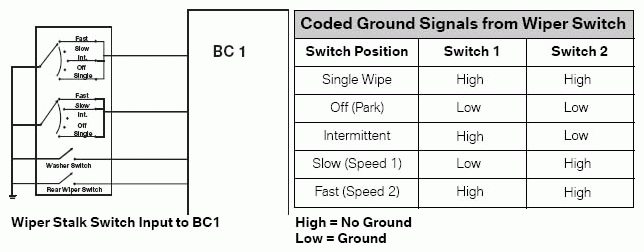

Fig 1: Wiper Stalk Switch Input To BC1

Courtesy of BMW OF NORTH AMERICA, INC.

Workshop Hint

If the wiper motor stalls and then becomes free, the relay will not be re-energized until the key is cycled off and then back on.
